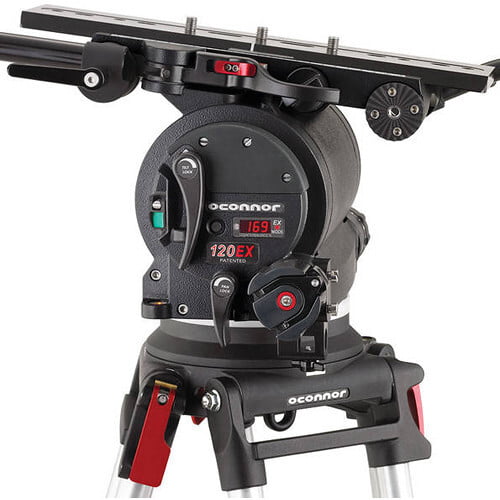

Oconnor 120EX Fluid Head Package (Mitchell Only)
The fluid head features a counterbalance system that will keep the camera from falling forward or backward when it is tilted. With the correct counterbalance, the camera will stay where you put it, throughout the entire +/-90° tilt range.
Specification
Camera Plate
Camera Plate Features | Sliding Balance Plate, Quick Release |
Camera Plate Type | 120 mm Euro Plate, ARRI Dovetail Plate, OConnor Plate, Panavision Dovetail Plate |
Tripod Platform
Base Mount | Mitchell Flat Base |
Pan & Tilt
Drag Control | Tilt: Continuous |
Vertical Tilt | +90° to -90° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
Physical
Load Capacity | 30 to 240 lb / 14 to 109 kg |
Counter Balance | Continuous |
Bubble Level | 1 x Illuminated |
Operating Temperature | -40 to 140°F / -40 to 60°C |
Weight | 34.1 lb / 15.5 kg |
