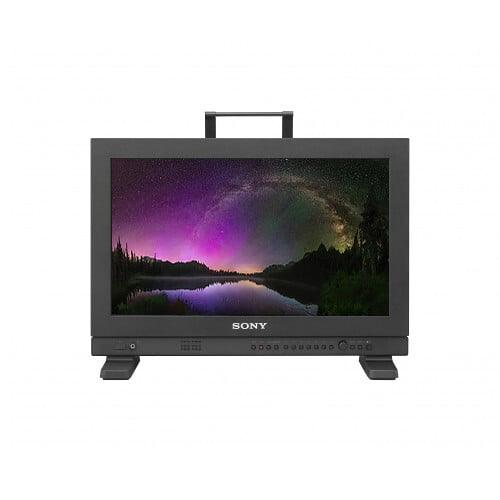

Sony LMD-A170 17" LCD Production Monitor

Number of Displays

1

Panel Type

IPS-Type LCD

Display Size

16.61" / 42.2 cm

Active Area

14.40 x 8.10" / 36.58 x 20.57 cm

Screen Resolution

1920 x 1080

Aspect Ratio

16:9

Viewing Angle

Horizontal: 178° (89/89)
Vertical: 178° (89/89)

Pixels Per Inch (ppi)

133 ppi

Image Controls

Color Temperature Selection, Focus Peaking, Screen Markers, Waveform

Video

2 x BNC (3G-SDI) Output
1 x BNC (Composite) Output
2 x BNC (3G-SDI) Input
1 x HDMI Type A Input
1 x BNC (Composite) Input

Audio

1 x 3.5 mm Input
1 x 3.5 mm Monitor Output
1 x 3.5 mm Headphone Output

Built-In Speaker

1 x 1 W

Power

1 x 4-Pin XLR Input

Other I/O

1 x Parallel (8P8C)
1 x LAN (RJ45)

Card Slot

None

Video Format

SDI (10-Bit 4:4:4 RGB, YCC)
1080p: 30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50
SDI (10-Bit 4:2:2 YCC)
1080p: 60/50/30/25/24
1080PsF: 25/24
1080i: 60/50
720p: 60/50/30/25/24
576i
480i
HDMI
1080p: 60/50/30/25/24
1080i: 60/50
720p: 60/50
576p: 50
480p: 60
576i
480i

PC Resolutions

1680 x 1050
1440 x 900
1360 x 768
1280 x 1024
1280 x 768
640 x 480

AC Input Power

100 to 240 VAC, 50 / 60 Hz at 0.5 to 0.4 A

DC Input Power

12 to 17 VDC

Battery Type

None

Power Consumption

49 W (Maximum)
42 W (Typical)

Mounting-Hole Pattern

100 x 100 mm

Operating Humidity

30 to 85%

Operating Temperature

32 to 95°F / 0 to 35°C
68 to 86°F / 20 to 30°C (Recommended)

Storage Humidity

0 to 90%

Storage Temperature

-4 to 140°F / -20 to 60°C

Dimensions (W x H x D)

16.5 x 11.4 x 2.8" / 41.91 x 28.96 x 7.11 cm
16.5 x 12.3 x 6.5" / 41.91 x 31.24 x 16.51 cm, Including Feet

Weight

10.8 lb / 4.9 kg

Warranty Length

Limited 3-Year Warranty

Package Weight

Box Dimensions (LxWxH)

20.8 x 16.9 x 10.4"
