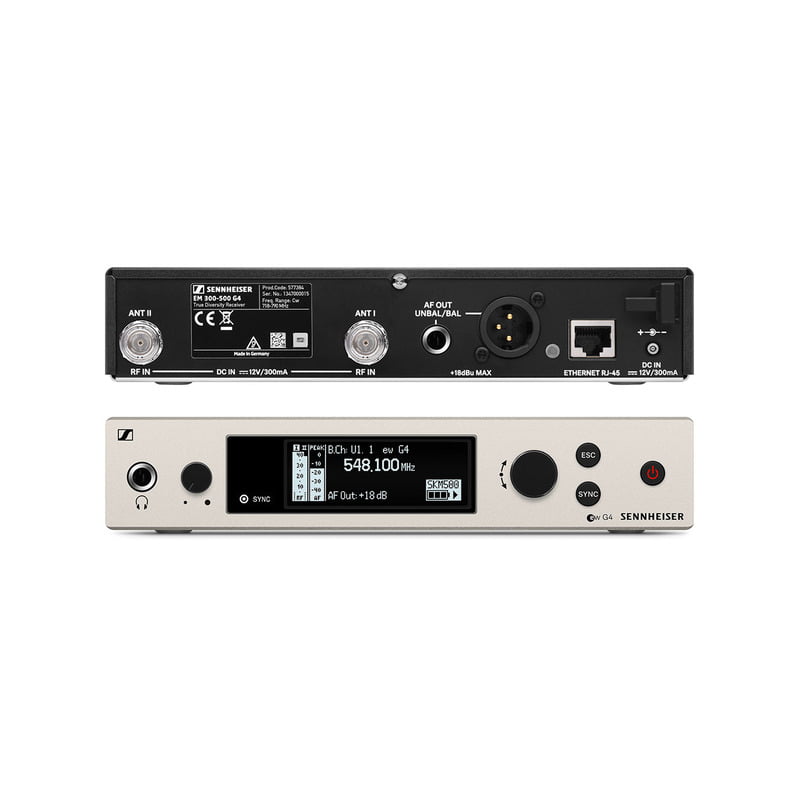

Sennheiser EM 300-500 G4-DW
- Frequency range
AS: 520 - 558 MHz
Aw+: 470 - 558 MHz
Bw: 626 - 698 MHz
Cw: 718 - 790 MHz
Dw: 790 - 865 MHz
GBw: 606 - 678 MHz
Gw: 558 - 626 MHz
Gw1: 558 - 608 MHz
JB: 806 - 810 MHz
K+: 925 - 937,5 MHz
- Dimensions
Approx. 202 x 212 x 43 mm
- Compander
Sennheiser HDX
- THD, total harmonic distortion
≤ 0.9 %
- Weight
Approx. 980 g
- Audio output
6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
- Signal-to-noise ratio
≥ 115 dBA
- Switching bandwidth
up to 88 MHz
- Peak deviation
±48 kHz
- Nominal deviation
±24 kHz
- Modulation
Wideband FM
- Power supply
12 V DC
- Antenna connector
2 BNC sockets
- Current consumption
350 mA
- Adjacent channel rejection
Typically ≥ 75 dB
- Intermodulation attenuation
Typically ≥ 70 dB
- Receiving frequency
Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- RF sensitivity
< 2.5 μV for 52 dBA eff S/N
- Squelch
5 to 25 dBμV in steps of 2 dB
- Equalizer
Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range
-10 °C to +55 °C
- Receiver Principle
True diversity
- Blocking
≥ 75 dB
