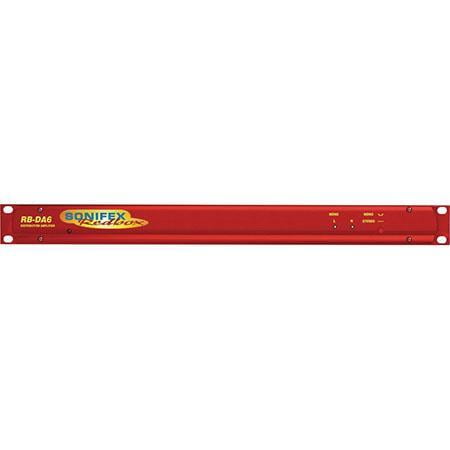

Sonifex RB-DA6 6 Way Stereo Distribution Amplifier

Specification

Maximum Input Level:

+28dBu

Maximum Output Level:

+28dBu

Frequency Response:

20Hz to 20kHz ±0.1dB (600Ω load, ref 1kHz)

Gain Range:

Adjustable 8dB loss to 18dB gain (L & R adjust)

Common Mode Rejection:

>66dB typically

Input impedance:

>20kΩ bridging

Output impedance:

<50Ω

Distortion:

0.01% THD @ 1kHz, ref +8dBu output

Noise:

-100dB unity gain, ref +8dBu output

Connections

Inputs:

2 x XLR 3 pin female (balanced, can be unbalanced)

Outputs:

12 x XLR 3 pin male (balanced, can be unbalanced)

Mains Input:

Filtered IEC, switchable 110-120V, or 220-240V, fused, 6W max

Fuse Rating:

Anti-surge fuse 100mA 20 x 5mm (230VAC)
Anti-surge fuse 250mA 20 x 5mm (115VAC)

Equipment Type

RB-DA6:

6 way stereo distribution amplifier

Physical Specification

Dimensions (Raw):

48cm (W) x 10.8cm (D) x 4.2cm (H) (1U)
19” (W) x 4.3” (D) x 1.7” (H) (1U)

Dimensions (Boxed):

58.5cm (W) x 22.5cm (D) x 7cm (H)
23” (W) x 8.9” (D) x 2.8” (H)

Weight:

Nett: 1.3kg  Gross: 1.9kg
Nett: 2.9lbs Gross: 4.2lbs
