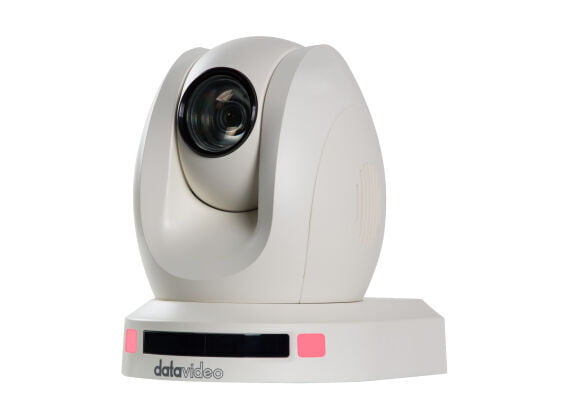

DATAVIDEO PTC-140TW HDBaseT PTZ Camera with 20x Optical Zoom (White)
Control, capture, and transmit 1080p video up to 328' away over a Cat 6 cable to an HDMI output destination with this HDBaseT 20x Zoom PTZ Camera with HDBaseT Receiver Box and Power Supply from Datavideo.
SPECIFICATION
Model Number
PTC-140T
Video format/Resolution
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Image Sensor
1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.)
2.07 Mega pixels
S/N Ratio
>55dB
Min. Illumination
0.5Lux (F1.8, AGC ON)
Electronic Shutter
Auto / Manual
Zoom Ratio
20x Optical Zoom, 10x Digital Zoom
Gamma Control
Off / Normal
Iris Control
Auto / Manual
Digital Noise Reductions
Yes
On-Screen Display (OSD)
English, Simplified Chinese
White Balance
Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
AGC / Gain Control
Auto / Manual
Mirror / Flip Image
Yes
Focus Mode
Auto / Manual
Panning / Tilting Range
Pan: 340° , Tilt: +90° to -30°
Panning / Tilting Speed
Pan: 0.1~60°/sec
Tilt: 0.1~30°/sec
Preset
255 Position
Focal Length
f=5.2 (wide) to 98 (tele) mm
F1.6 to F3.5
Field of View (Horizontal, Wide)
Approx. 54.7° (WIDE END) / 3.3° (TELE END)
Image Compensation
Backlight Compensation
Video Output
HDBaseT (PoE) x1
RJ-45 x1
Audio Input
3.5mm Line in
Tally LED
Dual color (Red, Green)
Lens Filter
M52.0 x 0.75 Thread with UV Protection
Control Protocol
VISCA, Pelco-D, Pelco-P, DVIP
Remote Control Interface
RS-232
Lan (RJ-45)
HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
Video Compression Format
H.264, H.265, Dual stream output
Audio Compression Format
AAC/MP3/G.711A Audio compression
Audio Bitrate
96Kbps, 128Kbps, 256Kbps
HD IP Interface
100M IP port(100BASE-TX); Support DVIP
Streaming Protocols
TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc
