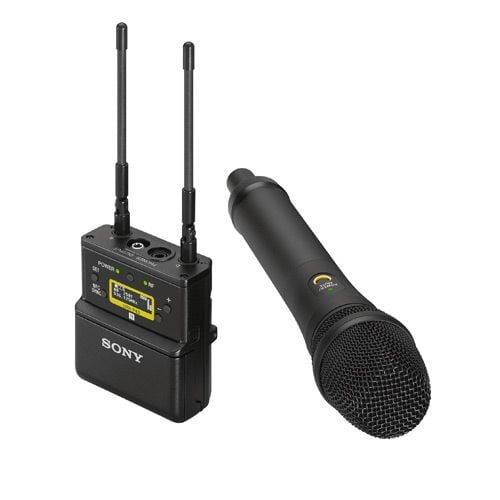

Sony - UWP-D22-K42 - UHF Wireless Microphone Package

Specifications

Handheld microphone

• Oscillator type: crystal controlled PLL synthesizer
• Carrier frequencies: 638.025 MHz to 694.000 MHz (UHF TV channels 42 to 48)
• Frequency range: 70 Hz to 18 kHz (typical)
• Microphone capsule: dynamic, uni-directional

General

• operating temperature: 0 ° C to 50 ° C
• Dimensions: 258 mm length, 48 mm diameter
• Weight: 255 g (without batteries)

Audio delay:

• approx. 0.35 ms (analog output)
• approx. 0.24 ms (digital output)

• Audio output connector: 3.5 mm jack (lockable)

Audio output level:

• -60 dBV (3.5 mm diameter 3-pin, lockable mini jack, analog output, 0 dB audio output level)
• -20 dBFS (external connection, digital output, 0 dB audio output level)
• -50 dBFS (external connection, analog output, 0 dB audio output level)

• Setting range for analog audio output: -12 dB to +12 dB (3 dB steps)
• Headphone jack: 3.5 mm jack
• Headphone output level: Max. 10mW (16 ohms)

Signal frequency of the audio signal:

• in UWP-D Compander mode: 32.382 kHz
• in UWP Compander mode: 32 kHz
• in Compander mode WL800: 32.768 kHz

• Display: OLED

Electricity demand:

• DC 3.0 V (two AA alkaline batteries)
• DC 5.0 V (supply via USB Type-C connector)

• Battery life: approx. 6 hours (measured when using two AA alkaline batteries at 25 ° C and AUTO OFF display mode)

General

• operating temperature: 0 ° C to 50 ° C
• Dimensions: 63 x 70 x 31 mm (without antenna)
• Weight: 131 g (without batteries)
