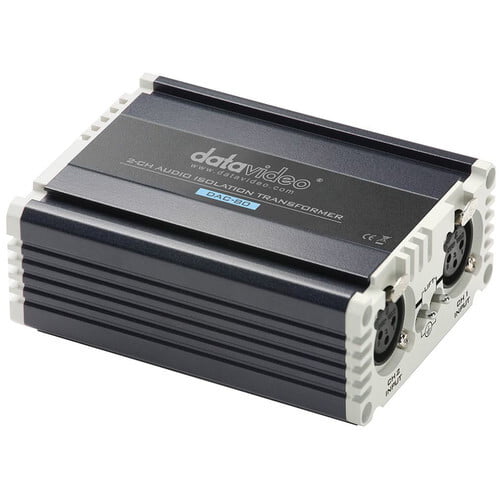

DATAVIDEO DAC-80 - 2 Channel Audio Isolation Transformer
Non-returnable
$119.00
Tags:
The Datavideo DAC-80 Audio Isolation Transformer is designed to remove hum and buzz created by ground loops. Normal voltage differences in the system grounding points between different pieces of equipment cause small AC power currents to flow in the shield of audio cables.
Product Details
Specification
Impedance | 600 Ohm ±10% (input & output) |
Bandwidth | 20 Hz - 20 kHz ±0.3 dB |
THD | 1 kHz: 20 Hz: 0.05% @ 4 dBu |
Insertion Loss | |
Turns Ratio | 1:1 |
Inputs | 2 x XLR (ch1 and ch2) |
Outputs | 2 x XLR (ch1 and ch2) |
Dimensions | 3.3 x 1.8 x 4.4" (85.0 x 45.2 x 111.5 mm) |
Weight | 1.0 lb (453.6 g) |
