AVMATRIX 4K HDMI PCIE Capture Card
$249.00
Tags:

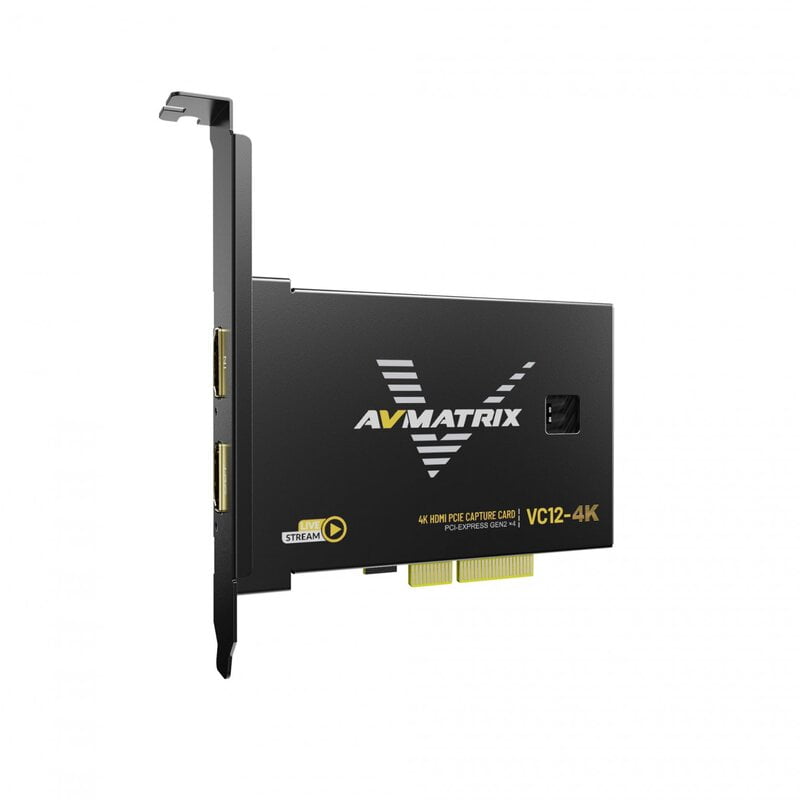

AVMATRIX VC12-4K UHD 4K HDMI PCIe Capture Card with its HDMI input and loop output. The PCIe 2.0x4 interface supports up to UHD 4K video at 60 fps. It outputs YUY2 uncompressed video for a high-quality picture.
Product Details
SPECIFICATION
System Connection PCIe 2.0 x4 Video Inputs 1 x HDMI (HDMI 2.0) Female Audio Inputs None Video Outputs 1 x HDMI (HDMI 2.0) Female (Loop Output) Input Video Format HDMI
UHD 4K 60 fps
1440p 144 fps
1080p 240 fps Input Audio Format LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit Output Video Format HDMI
UHD 4K 25/30/50/60 fps
DCI 4K 25/30/50/60 fps
1440p 60 fps
DCI 2K 60 fps
2560 x 1440 25/30/50/60/120/144 fps
1080p Ultrawide (2560 x 1080) 60 fps
WUXGA (1920 x 1200) 60 fps
1080p 25/30/50/59.94/60/120/144/240 fps
UXGA (1600 x 1200) 60 fps
WXGA+ (1440 x 900) 60 fps
SXGA (1280 x 1024) 60 fps
WXGA (1280 x 800) 60 fps
1280 x 720 (Non-Standard WXGA) 25/30/50/59.94/60/120/144/240 fps
XGA (1024 x 768) 60 fps
SVGA (800 x 600) 60 fps
576p 60 fps
480p 60 fps Output Audio Format LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit Embedded Audio HDMI
StandardsHDR Compatibility Not Specified by Manufacturer
HardwareOS Compatibility Windows 7 or Later
Linux 18.4 or Later
*As of August, 2022: Check with manufacturer for the most up-to-date compatibility Power Consumption Device: 2 W
EnvironmentalOperating Temperature 32 to 140°F / 0 to 60°C Storage Temperature -4 to 158°F / -20 to 70°C Operating Humidity 5 to 90% (Non-Condensing)
GeneralDimensions 4.7 x 3.8 x 0.9" / 120.1 x 95.7 x 21.6 mm Weight 3.5 oz / 100 g
Packaging InfoPackage Weight 0.35 lb Box Dimensions (LxWxH) 5.8 x 4.6 x 1.4"
| System Connection | PCIe 2.0 x4 |
| Video Inputs | 1 x HDMI (HDMI 2.0) Female |
| Audio Inputs | None |
| Video Outputs | 1 x HDMI (HDMI 2.0) Female (Loop Output) |
| Input Video Format | HDMI UHD 4K 60 fps 1440p 144 fps 1080p 240 fps |
| Input Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit |
| Output Video Format | HDMI UHD 4K 25/30/50/60 fps DCI 4K 25/30/50/60 fps 1440p 60 fps DCI 2K 60 fps 2560 x 1440 25/30/50/60/120/144 fps 1080p Ultrawide (2560 x 1080) 60 fps WUXGA (1920 x 1200) 60 fps 1080p 25/30/50/59.94/60/120/144/240 fps UXGA (1600 x 1200) 60 fps WXGA+ (1440 x 900) 60 fps SXGA (1280 x 1024) 60 fps WXGA (1280 x 800) 60 fps 1280 x 720 (Non-Standard WXGA) 25/30/50/59.94/60/120/144/240 fps XGA (1024 x 768) 60 fps SVGA (800 x 600) 60 fps 576p 60 fps 480p 60 fps |
| Output Audio Format | LPCM (Linear Pulse-Code Modulation): 48 kHz / 16-Bit |
| Embedded Audio | HDMI |
Standards
| HDR Compatibility | Not Specified by Manufacturer |
Hardware
| OS Compatibility | Windows 7 or Later Linux 18.4 or Later *As of August, 2022: Check with manufacturer for the most up-to-date compatibility |
| Power Consumption | Device: 2 W |
Environmental
| Operating Temperature | 32 to 140°F / 0 to 60°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | 5 to 90% (Non-Condensing) |
General
| Dimensions | 4.7 x 3.8 x 0.9" / 120.1 x 95.7 x 21.6 mm |
| Weight | 3.5 oz / 100 g |
Packaging Info
| Package Weight | 0.35 lb |
| Box Dimensions (LxWxH) | 5.8 x 4.6 x 1.4" |
