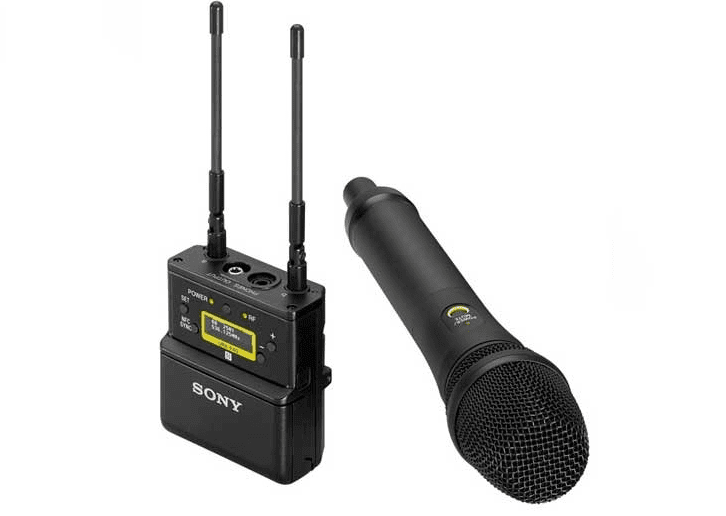

Sony UWP-D22/K33 Wireless Mic Package

Oscillator type

Reception Type

True diversity method

Antenna Type

1/4 λ wavelength wire antenna (angle-adjustable)

Carrier Frequencies

14UC : 470.125 MHz to 541.875 MHz(UHF-TV channels 14 to 25)
25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
42LA : 638.125 MHz to 697.875 MHz(UHF-TV channels 42 to 51)
90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
21CE : 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz(UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz(UHF-TV channels 42 to 48)
38CN : 710.025 MHz to 782.000 MHz(UHF-TV channels 38 to 46)
E : 794.125 MHz to 805.875 MHz
BJ : 806.125 MHz to 809.750 MHz
KR : 925.125 MHz to 937.500 MHz

Frequency Response

23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (typical) (J model)

Signal-to-Noise Ratio

60 dB (1 kHz sine wave, 5 kHz modulation)

Distortion (T.H.D)

0.9% or less (1 kHz sine wave, 5 kHz modulation)

Audio Delay

Approx. 0.35 ms (analog output)
Approx. 0.24 ms (digital output)

Audio Output Connector

3.5 mm diameter 3-pole locking mini jack, external connection

Audio Output Level

–60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level)
–20 dBFS (external connection, digital output, 0 dB audio output level)
–50 dBFS (external connection, analog output, 0 dB audio output level)

Analog Audio Output Adjustment Range

-12dB - +12dB (3dB step)

Headphone Output Connector

3.5 mm diameter mini jack

Headphone Output Level

Max. 10mW (16-ohm)

Tone Signal Frequency

In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz

Display

OLED

Power Requirements

DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)

Battery Life*

Approx. six hours
*Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F) DISPLAY MODE set to AUTO OFF.

Operating Temperature

0 °C to 50 °C (32 °F to 122 °F)

Storage/Transport Temperature

–20 °C to +55 °C (–4 °F to +131 °F)

Dimensions

63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in.) (W / H / D) (excluding antenna)

Mass

Approx. 131 g (4.6 oz) (excluding batteries)

Oscillator Type

Crystal-controlled PLL synthesizer

Antenna Type

1/4 λ wavelength wire antenna

Carrier Frequencies

14UC : 470.125 MHz to 541.875 MHz(UHF-TV channels 14 to 25)
25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)
42LA : 638.125 MHz to 697.875 MHz(UHF-TV channels 42 to 51)
90UC : 941.625 MHz to 951.875 MHz, 953.000 MHz to 956.125 MHz, and 956.625 MHz to 959.625 MHz
21CE : 470.025 MHz to 542.000 MHz(UHF-TV channels 21 to 29)
33CE : 566.025 MHz to 630.000 MHz(UHF-TV channels 33 to 40)
42CE : 638.025 MHz to 694.000 MHz(UHF-TV channels 42 to 48)
38CN : 710.025 MHz to 782.000 MHz(UHF-TV channels 38 to 46)
E : 794.125 MHz to 805.875 MHz
BJ: 806.125 MHz to 809.750 MHz
KR : 925.125 MHz to 937.500 MHz

RF Output Power

30 mW/5 mW selectable (UC, U, CE, LA, CN models)
10 mW/2 mW selectable (J, E, KR models)

Capsule Type

Dynamic

Directivity

Uni-directional

Reference Audio Input level

–55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)

Maximum Audio Input Level

151 dB SPL (21 dB attenuation, using supplied microphone unit )

Audio Attenuator Adjustment Range

0 dB to 21 dB (3 dB steps)

Frequency Response

70 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
70 Hz to 15 kHz (Typical) (J model)

Signal-to-Noise Ratio

60 dB (–60 dBV, 1 kHz sine wave input ) 102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted)
96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)

Distortion

0.9% or less (–60 dBV, 1 kHz input )

Audio Delay

Approx. 0.35 ms

Tone Signal Frequency

In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz

Display

OLED

Power Requirements

DC 3.0 V (two LR6/AA size alkaline batteries)
DC 5.0 V (supplied from USB Type-C connector)

Battery life*

Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
Approx. 10 hours with output power of 10 mW (J, E, KR models)

* Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).

Operating Temperature

0 °C to 50 °C (32 °F to 122 °F)

Storage/Transport Temperature

–20 °C to +55 °C (–4 °F to +131 °F)

Dimensions

ø48 x 258 mm (1 15/16 x 10 1/4 in.) (diameter / length)

Mass
