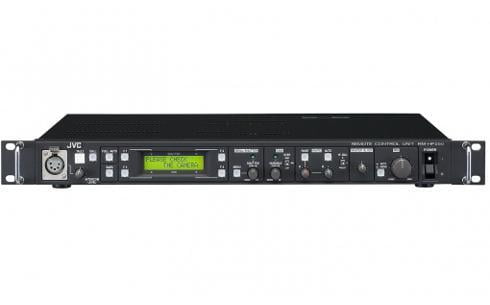

JVC RM-HP790DE CCU Camera control unit, 26p HD-SDI
Specification
System usable for |
|
Camera Type | GY-HM890E/GY-HM890CHE |
Camera Type | GY-HM790E/GY-HM790CHE |
Camera Type | GY-HD250E/GY-HD251E |
System Signal Support | |
Video Signal Format max | 1080i/50 SMPTE292M / SD/SDI SMPTE259M |
Return Signal Format max | SD VBS Signal |
4 Wire Intercom | NO |
Genlock | HD Y-Sognal or Tri-Level / SD VBS Signal |
IP Ethernet Interface for Camera | NO |
Head unit build in IP Interface adaptor for Camera USB Host connections | NO |
LANC support for remote units | NO |
Serial remote support control | YES |
Tally support | YES |
System Cable maximal length | |
Component System max. Cable length | 100 Meter |
Head unit needs additional Cable for camera body connections | HDSDI |
IN-OUT´s Connections | |
From Camera | HD.SDI by selected component cable (Hybrid HDSDI) |
From Camera | RGB Signals |
From Camera | Component |
From Camera | Composite |
To Camera | HD Y signal or composite SD |
To Camera | AUX in Composite |
Power and Environment Specs | |
Power | 220V |
Power consumption | 0.4A |
Operation Temperature in Celsius | -5 to 40 degree |
Operation Humidity:(Non-Condensing) | 30% to 80% |
Storage Temperature in Celsius | -20 to 60 degree |
Storage Humidity (Non-Condensing) | 30% to 85% |
Mechanical Information | |
Base station dimensions | W:483mm / H:52mm / D:306mm |
Base station dimensions RACK height in Unit | 1 U |
Base station weight | 5 Kg |
Include Package | |
Cable 1 | Power cord ~ 2,5 M |
Instructions? | Yes |
