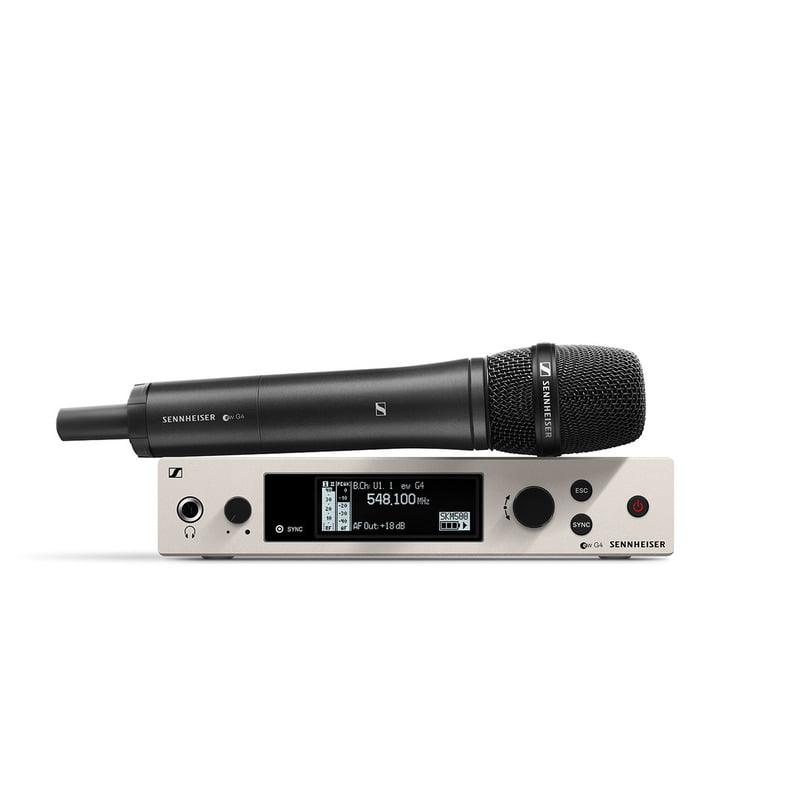

Sennheiser EW 500 G4-935-BW
Renowned sound engineers rely on ew 500 G4's flexibility, especially when handling multi-channel settings on the world's music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.
- Frequency range
Bw: 626 - 698 MHz
- Dimensions
Approx. 202 x 212 x 43 mm
- Compander
Sennheiser HDX
- THD, total harmonic distortion
≤ 0.9 %
- Weight
Approx. 980 g
- Audio output
6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
- Signal-to-noise ratio
≥ 115 dBA
- Switching bandwidth
up to 88 MHz
- Peak deviation
±48 kHz
- Nominal deviation
±24 kHz
- Modulation
Wideband FM
- Power supply
12 V DC
- Antenna connector
2 BNC sockets
- Current consumption
350 mA
- Adjacent channel rejection
Typically ≥ 75 dB
- Intermodulation attenuation
Typically ≥ 70 dB
- Receiving frequency
Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- RF sensitivity
< 2.5 μV for 52 dBA eff S/N
- Squelch
5 to 25 dBμV in steps of 2 dB
- Equalizer
Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range
-10 °C to +55 °C
- Receiver Principle
True diversity
- Blocking
≥ 75 dB
SKM 500 G4
- RF output power
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Dimensions
Approx. Ø 50 x 265 mm
- Compander
Sennheiser HDX
- THD, total harmonic distortion
≤ 0.9 %
- Weight
(incl. batteries) approx. 450 g
- Signal-to-noise ratio
≥ 115 dBA
- Switching bandwidth
up to 88 MHz
- Peak deviation
±48 kHz
- Nominal deviation
±24 kHz
- Operating time
Typically 8 h
- Modulation
Wideband FM
- Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption
at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 µA
- Powering
3 V battery / 2.4 V rechargeable battery
- Transmission frequency
Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- AF frequency response
80 – 18,000 Hz
- Temperature Range
-10 °C to +55 °C
- Frequency stability
≤ ±15 ppm
MMD 935-1
- Sound pressure level (SPL)
154 dB SPL
- Transducer principle
dynamic
- Pick-up pattern
cardioid
- Sensitivity
2.5 mV/Pa
