Ross Video SFS-6622-A 3G/ HD/SD-SDI Frame Synchronizer W/ Fiber Optics3G/ HD/SD-SDI Frame Synchronizer W/ Fiber Optics3G/ HD/SD-SDI Frame Synchronizer W/ Fiber Optics
Non-returnable
$2,731.11
Tags:

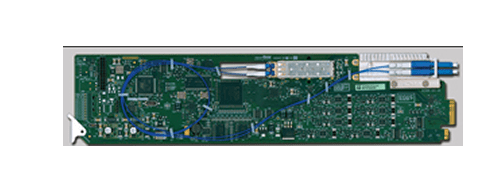

The SFS-6622-A 3G A/V frame synchronizer is the ideal solution for timing and processing both audio and video in 3G, high definition, and standard definition SDI applications. Fiber optic inputs and outputs makes this card ideal for mixed format electrical / optical installations.
The input on the SFS-6622-A is software selectable between BNC and fiber optic LC connectors, and can accept all popular formats, including 480i, 576i, 720p, 1080i, and 1080p. Input video is automaticalyl detected to simplify operation and configuration. The output format automatically follows the input format and are available both as Standard BNC and Fiber Optic LC Connectors.
The input on the SFS-6622-A is software selectable between BNC and fiber optic LC connectors, and can accept all popular formats, including 480i, 576i, 720p, 1080i, and 1080p. Input video is automaticalyl detected to simplify operation and configuration. The output format automatically follows the input format and are available both as Standard BNC and Fiber Optic LC Connectors.
Product Details
- BNC electrical or single mode fiber optic LC input
- Simultaneous dual BNC electrical and single mode fiber optic LC outputs
- Optical output power of -7dBm at 1310nm
- Optical receiver sensitivity of -18 dBm
- Supports all popular formats: 480i, 576i, 720p, 1080i, 1080pSF, 1080p 8 AES3 HD-BNC connections for audio embedding / de-embedding, with sample rate conversion
- Onboard test generator for loss of input conditions
- Auto input format detection
- Onboard video proc amp A/V delay of up to 28 frames
- Passes ancillary VANC Data
