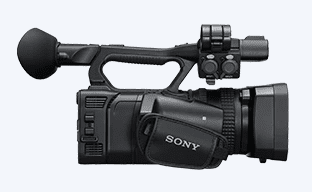

Sony PXW-Z150 4K XDCAM Camcorder

Image Sensor

1-Chip 1" CMOS Sensor

Sensor Resolution

20.00 MP

Effective Sensor Resolution

14.2 MP

Gain

-3 to 33 dB

Minimum Illumination

1.7 Lux

White Balance Range

2300 to 15,000K

Focal Length

9.3 to 111.6mm

35mm Equivalent Focal Length

29 to 348mm

Optical Zoom Ratio

12x

Max Digital Zoom

48x

Maximum Aperture

f/2.8 to 4.5

Filter Size

62 mm

Control Rings

Focus
Zoom
Iris

Image Stabilization

Optical

Focus Control

Autofocus
Manual Focus

Shutter Speed

1/6 to 1/10,000 sec

Built-In ND Filter

Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Built-In Microphone Type

Stereo

Recording Media

1 x SDXC/Memory Stick PRO Duo Hybrid Card Slot
1 x SDXC Card Slot

Recording Modes

XAVC-L 4:2:0 8-Bit:
3840 x 2160p at 23.98/25/29.97 fps (60 to 100 Mb/s)
1920 x 1080i at 50/59.94 fps (25 to 50 Mb/s)
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (35 to 50 Mb/s)
1280 x 720p at 50/59.94 fps (50 Mb/s)
MPEG-2 4:2:2:
1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s)
1280 x 720p at 23.98/25/29.97/50/59.94 fps (50 Mb/s)
AVCHD:
1920 x 1080p at 23.98/25/29.97/50/59.94 fps (24 to 28 Mb/s)

Variable Frame Rates

1080i: to 120 fps
1080i: to 100 fps
1080i: 1 to 60 fps
1080i: 1 to 50 fps

Audio Recording

2-Channel 24-Bit 48 kHz

Video Connectors

1 x RCA (Composite) Output
1 x HDMI Output
1 x BNC (3G-SDI) Output

Audio Connectors

1 x Stereo 2RCA Output
1 x 1/8" / 3.5 mm Stereo Headphone Output
2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input

Other I/O

1 x 2.5 mm LANC Control
1 x USB Micro-B

Wireless Interfaces

2.4 GHz Wi-Fi

Display Type

LCD

Screen Size

3.5"

Screen Resolution

1,560,000 Dots

Screen Size

.39"

EVF Resolution

1,440,000 Dots

Battery Type

Sony L-Series

Power Connectors

1 x Barrel Input

Power Consumption

6.6 W

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Accessory Mount

1 x Multi-Interface Shoe

Tripod Mount

1/4"-20 Female

Dimensions

6.7 x 7.4 x 14.6" / 171.3 x 187.8 x 371.3 mm

Weight

5.1 lb / 2.3 kg

Package Weight

8.74 lb

Box Dimensions (LxWxH)

18.05 x 10.6 x 9.5"
