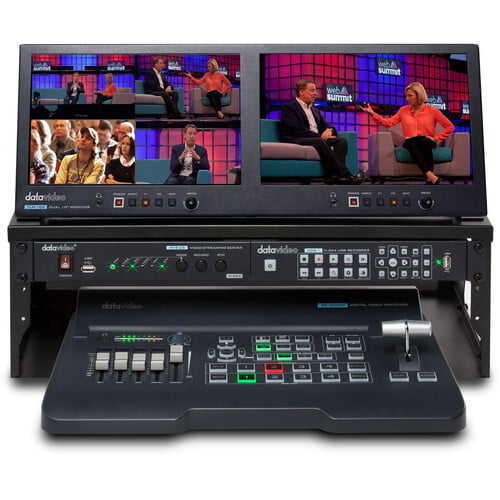

DATAVIDEO GO 500 Studio Bundle 4 Inp HDMI switcher w. streaming/rec
SPECIFICATION
Model Number
GO 500 Studio
Video Standard
HD & SD
Video Format
1080p 50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i 50Hz
480i 59.94Hz
Video Processing
HDMI: YUV 4:4:4 10 bit, RGB: 4:4:4
Video Input
4x HDMI
Video Output
3x HDMI
Audio Input
1x Stereo RCA (L/R)
2x Mono Microphone
De-embedded Digital Audio (2 CH)
Audio Output
1x Stereo RCA (L/R)
1x Stereo headphone (Mini Jack with volume control)
Embedded Digital Audio (2 CH)
Embedded Audio Support
Embedded 2-CH digital/analogue audio
Chromakey
----
USK
Lumakey
DSK
----
Picture in Picture
1
Logo Insertion
----
Still Store
----
Effects
FTB, Cut, Wipe with border
Tally Output
1x D-sub 15pin, dual color
Built-in Audio Mixer
Yes
Preview Display
Dual 10.1" LCD
Special Features
----
Streaming
Streaming Encode
H.264/AVC, Main/High Profile
Streaming Video Bitrate
Record Only: Up to 16Mbps (1080p50/60)
Stream Only: Up to 10Mbps (1080p50/60)
Rec+Stream: 10Mbps (1080p25/30)
Streaming Audio Mode
Stereo/Mono
Streaming Audio Bitrate
Stereo: 64~384Kbps
Mono: 32~192Kbps
Streaming Protocols
TS over TCP/UDP (unicast & multicase)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
Network Interface
1x RJ45 (10/100Mbps Ethernet)
Streaming Recording File Format
H.264
Streaming Storage
SD Card
Recording
Recording Storage Medium
SD Card
How to Retrieve Recorded Content
Removable Hard Drive,
transfer data via USB 2.0
Recording Storage File System
NTFS, FAT
Recorded File Format
MP4
Audio
Audio Input
----
Audio Output
----
Audio Indicator
----
Audio Delay
----
Others
Dimension (LxWxH)
493 x 253 x 331 (monitor's up)
493 x 253 x 190 (monitor's down)
Weight
16 kg
Power
DC 12V, 60W
Operating Temp. Range
0~40 °C
What's in the Box
1 x GO 500 Studio Product
1 x AD Switch DC 12V
1 x AC Cord
3 x HDMI Cable
15 x Cable Ties
