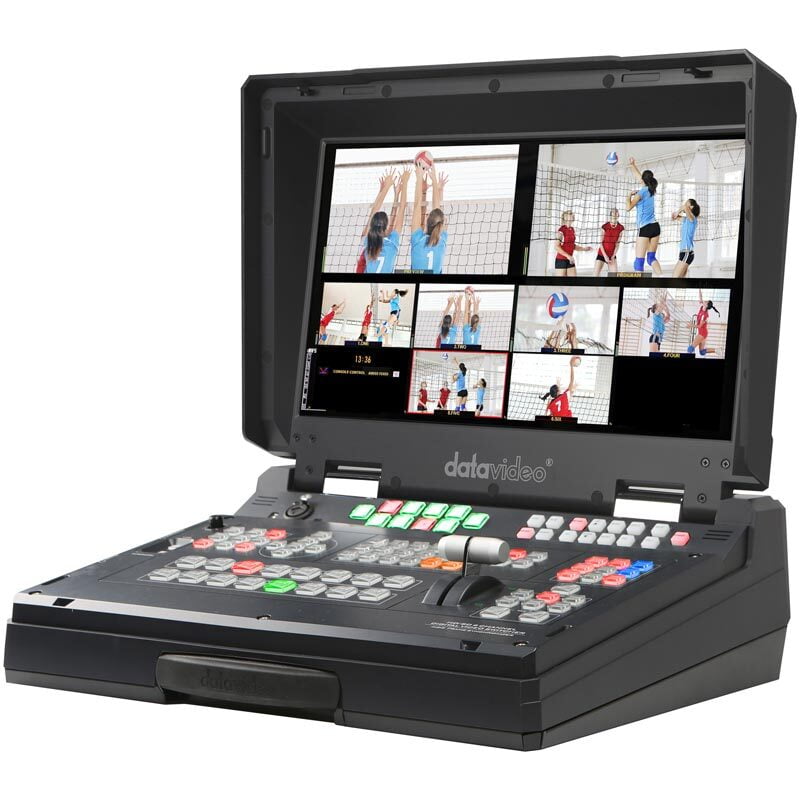

DATAVIDEO HS-2200 - HD 6-Channel Portable Mobile Cast Video Studio

1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i 50Hz
480i 59.94Hz

Input Routable / Crosspoint

All 6, repeatable

Video Input

6x HD-SDI, 2x HDMI (on CH5 & 6)

Computer Graphic Interface

2 via HDMI

Down-converted Output

N/A

Video Output

5x SDI Outputs assignable: AUX 1-4, PGM, PVW, PGM Clean or multiview
1x HDMI multi-view

Audio Input

4x Balanced XLR

Audio Output

2x Balanced XLR

Embedded Audio Support

Input up to 16 channels,
Output 4 channels

Audio Delay Calibration

N/A

A+V Switching

Yes

USK

N/A

DSK

1, support Lumakey & Linear key (Key / Fill)

Picture in Picture

2

Logo Insertion

2 (or 1 logo + 1 clock)

Title Creator

Yes, CG-200 software free download

Built-in Audio Mixer

N/A

Built-in Monitor Display

17.3” HD TFT LED backlit, 1600x900 pix

Built-in Intercom & Tally

8 channels (4 belt-packs incl.)

Special Features

Built in TC-200 CG interface
6x6 matrix seamless switch

Dimension (LxWxH)

455 x 355 x 134 mm

Weight

16.5 Lbs (7.5 kg), Reinforce Plastic Case

Power

DC 12V, 5A

Operating Temp. Range

0~40 °C

Options

CB-22H/23H/46/47/60/61/62

What's in the Box

1 x HS-2200 Unit
1 x AD Switch DC 12V with AC Cord
1 x CB-41 / XLR to XLR Cable
4 x CB-3 / XLR cable
1 x USB Light
1 x Goose neck MIC
4 x Headphone Microphone
4 x ITC-100SL
1 x Tally light
4 x Velcro
1 x Thank You Card
