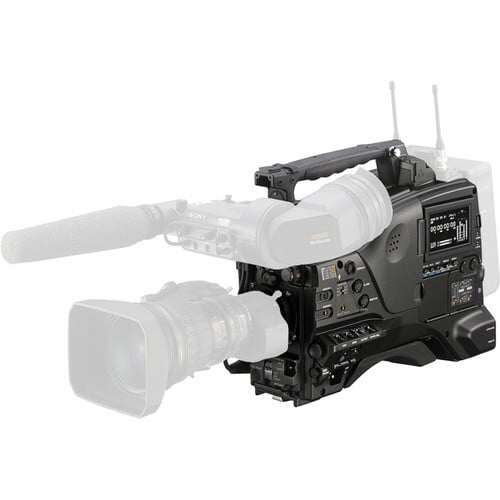

Sony PDW-850 XDCAM HD422 2/3" 3CCD Camcorder

Image Sensor

3-Chip 2/3" CCD Sensor

Effective Sensor Resolution

1920 x 1080 (2.07 MP)

Horizontal Resolution (TV Lines)

1000 TV Lines or More

Gain

-6 to 42 dB

Signal-to-Noise Ratio

62 dB

Minimum Illumination

0.3 Lux

Lens Mount

B4 Mount

Shutter Speed

1/32 to 1/2000 sec

Built-In ND Filter

Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters

Recording Media

1 x XDCAM Disc Card Slot

Recording Modes

MPEG-2 4:2:2:
1920 x 1080p at 23.98/25/29.97 fps (50 Mb/s)
1280 x 720p at 59.94 fps (50 Mb/s)
MPEG-2 4:2:0:
1440 x 1080p at 23.98/25/29.97 fps (25 to 35 Mb/s)
1280 x 720p at 50/59.94 fps (25 to 35 Mb/s)

Audio Recording

4-Channel 24-Bit 48 kHz

IP Streaming

None

Video Connectors

2 x BNC (HD-SDI) Output
1 x BNC (Composite) Monitor Output
1 x BNC (HD-SDI) Input

Audio Connectors

1 x 5-Pin XLR Input/Output
1 x 1/8" / 3.5 mm Stereo Headphone Output
2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input
1 x 5-Pin XLR Input

Other I/O

1 x 8-Pin Hirose Control
1 x 12-Pin Lens Control
1 x RJ45 LAN
1 x 50-Pin Camera Interface
1 x BNC Genlock Input
1 x BNC Timecode Input
1 x BNC Timecode Output

Display Type

Articulating LCD

Size

3.5"

Resolution

960 x 540

Power Connectors

1 x 4-Pin XLR (12 VDC) Input
1 x 4-Pin XLR (11 to 17 VDC up to1 A) Output
1 x D-Tap (12 VDC) Output

Power Consumption

41 W

Operating Temperature

23 to 104°F / -5 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Operating Humidity

10 to 90%

Accessory Mount

None

Dimensions

5 x 10.6 x 13.2" / 124 x 269 x 332 mm

Weight

13 lb / 5.9 kg

Warranty Length

None

Package Weight

12.7 lb

Box Dimensions (LxWxH)

17.5 x 14 x 11"
