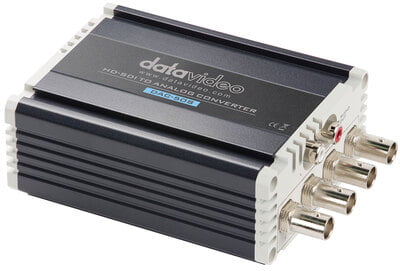

DATAVIDEO DAC-50S - SDI to Analogue Converter
Two available output combinations with independent SDI loop through.Can choose output options between 1 x YUV output & 1 x CV output or 1 x S-Video (Y/C) output & 2 x CV outputs. SDI loop through is unaffected by the adjustments of resolution setting to the analogue signal, users can connect the original video signal to other terminal device.
specifications
DAC-50S SDI to Analogue Converter
Conversion | 3G/HD/SD-SDI to Analog |
Video Inputs | 1x 3G/HD/SD-SDI |
Loop Through | Yes |
Video Outputs | YUV + Composite or Y/C + 2x Composite |
Audio Inputs | 1x SDI Audio embedded |
Audio Outputs | 2x RCA (Stereo Pair) |
Supported Video Input Formats | 1080p (50/59.94Hz) , |
Output Resolutions | 576i, 480i |
Equalizer | Yes |
Reclock | Yes |
Dimension (LxWxH) | 112 x 85 x 45 mm |
Weight | 0.5 kg |
Operating Temp. Range | 0~40 °C |
Power | DC 12V, 6W |
What's in the Box | 1 x DAC-50S |
