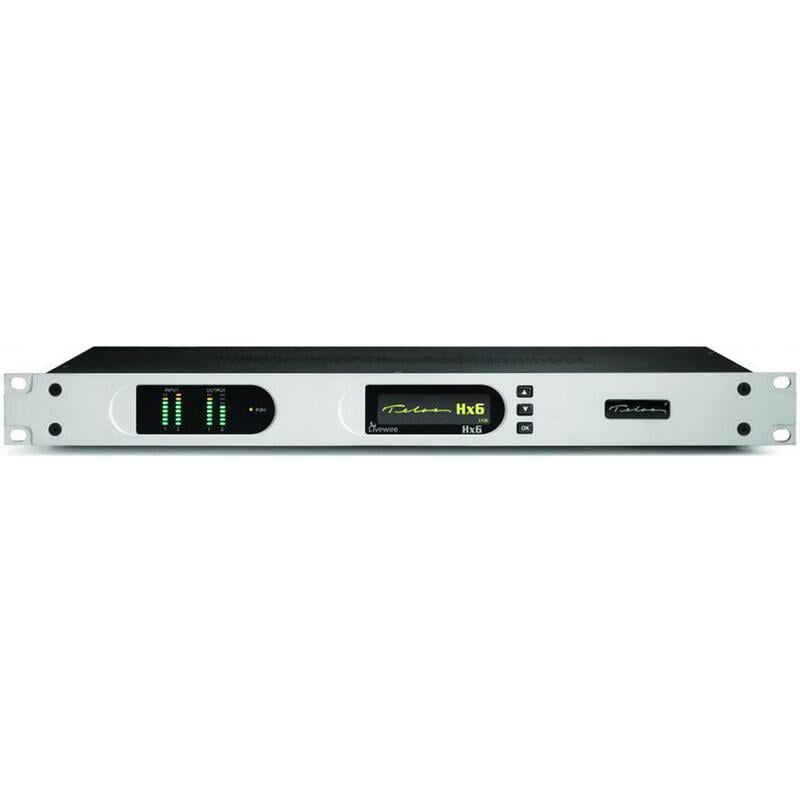

Telos Hx6 Six Line POTS Talk Show System (Livewire and Analog I/O)

Processing Functions

General

• Telos 3rd-generation Adaptive Digital Hybrids
• Telos Exclusive Feedback Reduction Functions, including Acoustic Echo Cancellation

Send (to caller) Processing

• Sample Rate Conversion
• High-pass Filter
• Frequency Shifter
• AGC/Limiter
• Program-on-Hold AGC/Limiter
• Sample Rate Conversion (with AES option)

Receive (from caller) Processing

• High-pass 'Hum' Filter
• Smart AGC / Platform Leveler
• Noise Gate
• Caller Ducking
• Telos' DDEQ (Digital Dynamic Equalization) 3-band Adaptive Spectral Processor
• Sample Rate Conversion

Analog Inputs

Send Analog Inputs

2x

Program-on-Hold Analog Inputs

1x

Connector

XLR Female, Pin 2 High (Active Balanced with RF Protection)

Output Level

Adjustable from -7 to +8 dBu (nominal)

Analog Clip Point

+21 dBu

Impedance

Bridging, > 10K Ohms

Analog-to-Digital Converter Resolution

20 bits

Analog Outputs

Receive Analog Outputs

2x

Connector

XLR Male, Pin 3 High

Output Level

Adjustable from -7 to +8 dBu (nominal)

Impedance

<50 ohms

Digital-to-Analog Converter Resolution

24 bits

Headroom Before Clipping

20 dB headroom from 4dBU nominal levels

AES Digital Input / Output (Optional)

Overview

Plug-in module converts the XLR inputs and outputs to AES3, providing 2x in on two XLR-Fs and 2x out on two XLR-Ms.

Rate Conversion

Sample Rate Converters on all inputs and outputs. Inputs can accept 32, 44.1, and 48kHz rates. Clock for outputs may be sourced from the AES inputs or internally-generated, locked to the ISDN network.

Input Level

Adjustable from -27 to -12 dBfs

Output Level

Adjustable from -27 to -12 dBfs

Audio Performance

Frequency Response

±.5 dB, 50 to 20 kHz (swept sine procedure, measured from analog input to output with unit in loop-back mode)

THD+N/Input

< 0.06% typical (measured at 0dB @ 1kHz analog in to AES out in loop-back mode)

Switching Matrix and Conferencing

Audio Routing and Switch

All Digital

Telephone Lines

6

Hybrids

2

Studio Inputs

2

Studio Outputs

2

Program-on-Hold

2

Control Ports

Ethernet 100Base-T

• Web server for configuration and software update
• Telnet for command line control and diagnostics
• Call Screening Interface server allows up to 8 instances of call screening software to connect simultaneously

General purpose Input/Output

2x 15-pin D-sub with status outputs and control inputs.

Control Ports

Protocol Compatibility

• National ISDN 1 and 2
• DMS-100 Custom Function
• AT&T 5ESS Custom Point-to-point
• Euro-ISDN conforming to the Net 3/ETS300 Protocol

Ethernet 100Base-T

• USA & Canada: Integrated NT1 for direct connection to ISDN line via the two-wire U-interface (6-position/2-pin RJ-11 connector) 2B1Q Line Encoding
• Worldwide: 4-wire S-interface (8-position / 8-pin RJ-45 Connector)

Ethernet 100Base-T

• µLaw (ISDN Proto set to Natl I-1, AT&T Custom, Q.931mu or DMS Custom)
• A-Law (ISDN Proto set to ETS-300)

Analog Telephone Line Connectivity

• Universal interface for worldwide application.
• Programmable loop current.
• Programmable ring and disconnect signaling (loop drop or tone).
• Programmable Flash time.
• Caller ID decoding using Bellcore 212 modem standard.

Hardware Control Interface

Up to eight VSet6 or Console Controllers via Ethernet connection.
