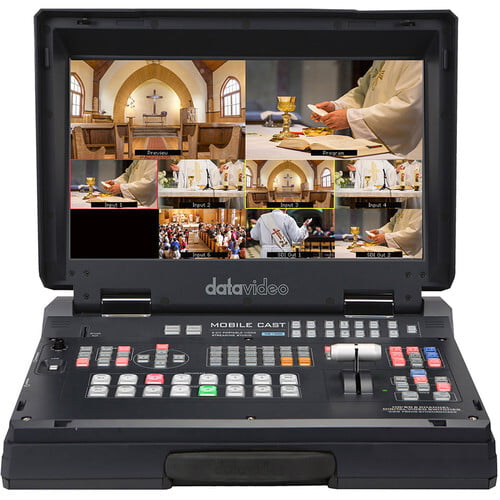

DATAVIDEO HS-1300 6-Channel HD Portable Video Streaming Studio- USED
Model Number
HS-1300
Video Standard
HD
Video Format
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
Input Routable / Crosspoint
All 6, repeatable
Video Input
4x HD-SDI
2x HDMI
Computer Graphic Interface
2 via HDMI
Down-converted Output
----
Video Output
3x HDMI + 2x SDI assignable: AUX 1-6, PGM, PVW, PGM Clean or Multiview
Analogue Audio Input
2x Balanced XLR
Analogue Audio Output
1x Stereo headphone
Digital Embedded Audio Support
Input 2 channels, Output 2 channels
Audio Delay Calibration
----
A+V Switching
Yes
USK
2x USK support Chromakey
DSK
2, support Lumakey & Linear key (Key / Fill)
Picture in Picture
1
Logo Insertion
----
Title Creator
----
Built-in Audio Mixer
----
Built-in Monitor Display
17.3” HD TFT LED backlit, 1600x900 pix
Built-in Intercom & Tally
----
Streaming
Streaming
H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10Mbps
Streaming Audio Encode
AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bit
Streaming Protocol
TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT
Streaming Control
Web browser UI for configuration and control Socket commands
Recording File System
FAT, exFAT, NTFS
Recording File Format
MP4
Streaming & Recording Setting Control
Web UI for system configuration and control
Others
Special Features
Streaming encoder and recorder
2 chromakey virtual studio
9 stinger transition and 30 virtual sets included
Dimension (LxWxH)
455 x 355 x 134 mm
Weight
16.3 Lbs (7.4 kg), Reinforce Plastic Case
Power
DC 12V, 5A
Operating Temp. Range
0~40 °C
What's in the Box
1 x HS-1300 Product
1 x AD Switch DC 12V with AC Cord
