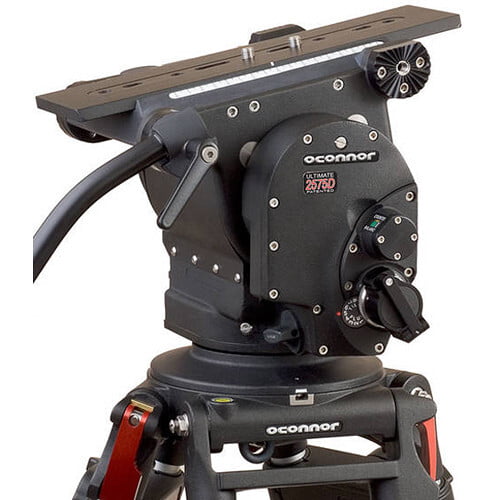

Oconnor Ultimate 2575D Fluid Head
The OConnor Ultimate 2575D Fluid Head includes the sinusoidal counterbalance system for true, accurate balance at any point in the tilt range and holds cameras up to 90 lb. It provides stepless, ultra-smooth pan and tilt fluid drag for improved control and stability for film-style shooting. The head comes with platform controls on the operator’s side of the head.
Specification
Camera Plate
Camera Plate Features | Sliding Balance Plate |
Camera Plate Type | 120 mm Euro Plate, ARRI Dovetail Plate, OConnor Plate, Panavision Dovetail Plate |
Tripod Platform
Pan & Tilt
Drag Control | 9-Step |
Drag Type | Fluid |
Vertical Tilt | +90° to -90° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
Physical
Load Capacity | 90 lb / 40.8 kg |
Counter Balance | Continuous (0 to 133 lb / 0 to 60.5 kg) |
Center of Gravity | 2 to 18" / 5.1 to 45.7 cm |
Bubble Level | 1 x Illuminated |
Operating Temperature | -40 to 140°F / -40 to 60°C |
Dimensions | 8.4 x 12.4 x 8.6" / 21.3 x 31.5 x 21.8 cm |
Weight | 22.9 lb / 10.4 kg |
