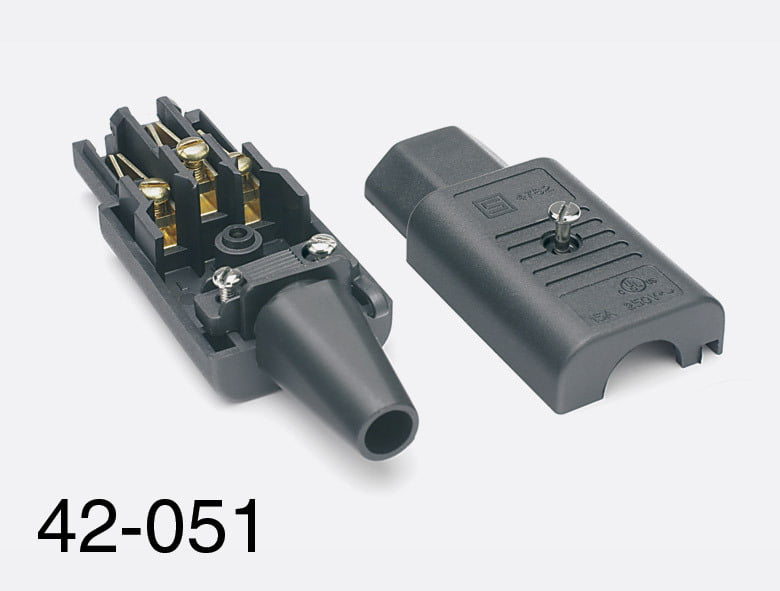

SCHURTER IEC MAINS CONNECTOR,C13 type , female, cable
AC mains power connectors, non keyed (cold condition), 10 amp 250VAC 50/60Hz rated, meeting IEC 60320 Approvals: IEC/EN, UL, AS/NZS and CSA.
Cable Types
Rewireable male and female cable types with professional screw terminals (wire receptacle hole and cross clamp-screw). Wire size up to 3x1mm sq. (18 AWG).
Cable type, female
Female (mains outlet) C13 type, cable connector. Rear cable entry.
Cable type, male
Male (mains inlet) C14 type, cable connector. Rear cable entry.
Panel Types
Flange type, male
Male (mains inlet) C14 two hole type. 6.3mm Quick connect 'Faston' spade connection.
Panel cutout 27.5 x 20.0mm min, screw hole centres 40.00mm, 3.5mm diameter.
Snap-in type, male
Male (mains inlet) C14 type. Suitable for 1.5mm panel thickness. 6.3mm Quick connect 'Faston' spade connection.
Panel cutout 27.5 +0.2/-0.0 x 19.8mm +0.2/-0.0.
Snap-in type, female
Female (mains outlet) C13 type. Unshuttered. Suitable for use with 1.5mm panel thickness. 3.5mm solder terminals. Panel cutout 32.5 x 24.8mm.
