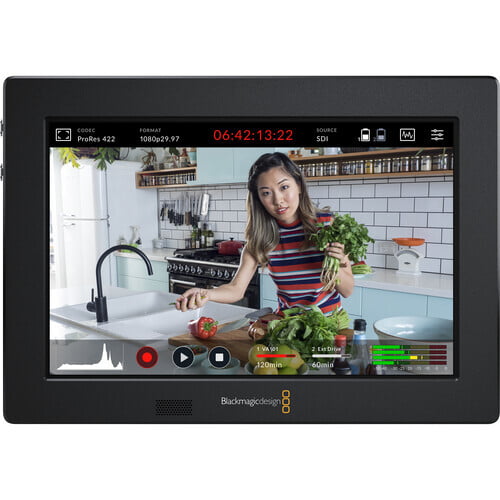

Blackmagic Design Video Assist 3G-SDI/HDMI 7" Recorder/Monitori,[
Blackmagic Video Assist is a portable monitor, a professional recorder, a portable scope and a fantastic camera viewfinder solution! You can also add better quality record codecs and a larger monitor to any SDI or HDMI camera!
Specification
Display
Panel Type | Unspecified LCD |
Display Size | 7.0" / 17.8 cm |
Screen Resolution | 1920 x 1200 |
Aspect Ratio | 16:9 |
Viewing Angle | Horizontal: 135° |
Touchscreen | Yes |
Maximum Brightness | 310 cd/m2 |
Pixels Per Inch (ppi) | 323 ppi |
Color Gamut | 100% Rec. 709 |
Real-Time LUT Monitoring | SDR |
Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
I/O
Video | 1 x HDMI Type A Input |
HDCP Support | Yes |
Embedded Audio | HDMI: 8-Channel |
Audio | 2 x Mini-XLR Input |
Built-In Speaker | 1 |
Power | 1 x Barrel (12 VDC) Input |
Other I/O | 1 x USB Type-C |
Card Slot | 2 x SD |
Wi-Fi | None |
Format Support
Video Format | SDI (10-Bit 4:2:2 YUV) |
Recording
Pulldown Conversion | None |
Camera Trigger | None |
Pre-Roll Record | None |
Encoding Formats | Up to 1920 x 1080 |
Maximum Audio Tracks | 16 |
Recording Media | 1 x SDXC (UHS-I) |
Metadata Tagging | Yes |
Timecode Support | SMPTE 12M via Embedded SDI / Embedded HDMI |
Phantom Power | None |
Power
DC Input Power | 12 VDC |
Battery Type | 2 x L-Series |
Mounting
Mounting | 6 x 1/4"-20 Female |
Environmental
Operating Humidity | 0 to 90% |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
General
Material of Construction | Aluminum |

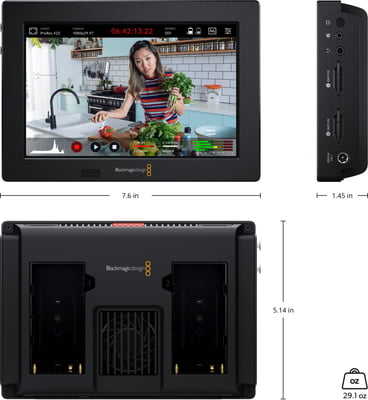

Dimensions (W x H x D) | 7.6 x 5.14 x 1.45" / 19.3 x 13.06 x 3.68 cm |
Weight | 1.82 lb / 825 g |
Warranty Length | Limited 1-Year Warranty |
