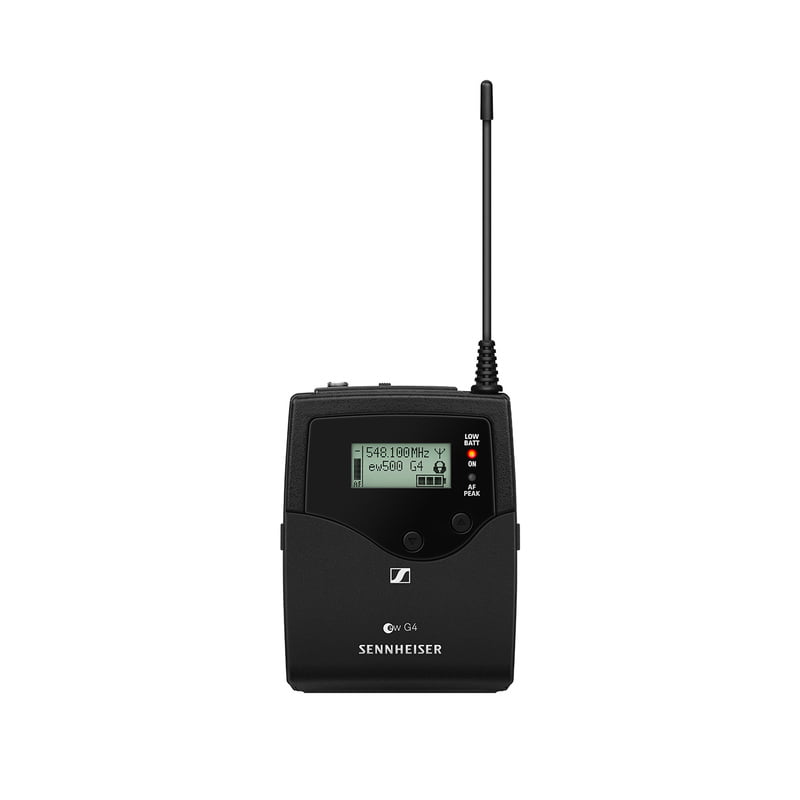

Sennheiser SK 500 G4-DW
Powerful bodypack transmitter with increased bandwidth and transmission power, ready to take the world’s biggest live stages. For evolution wireless G4 500 Series systems.
- Frequency range
Dw: 790 - 865 MHz
- Dimensions
Approx. 82 x 64 x 24 mm
- Compander
Sennheiser HDX
- THD, total harmonic distortion
≤ 0.9 %
- Weight
(incl. batteries) approx. 160 g
- Signal-to-noise ratio
≥ 115 dBA
- RF output power
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidth
up to 88 MHz
- Peak deviation
±48 kHz
- Nominal deviation
±24 kHz
- Operating time
Typically 8 h
- Modulation
Wideband FM
- Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption
at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 μA
- Input impedance
40 kΩ, unbalanced / 1 MΩ
- Max. Input voltage
3 Veff
- Powering
3 V battery / 2.4 V rechargeable battery
- Transmission frequency
Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- AF frequency response
Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
- Temperature Range
-10 °C to +55 °C
- Frequency stability
≤ ±15 ppm
