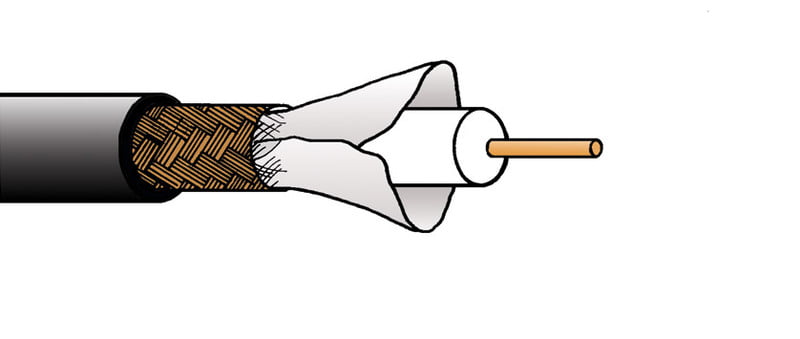

BELDEN 1855A CABLE Black
$812.00
Tags:
oaxial 75 ohm cable specifically for digital systems installations. Industry size type ‘RG59/U Sub Miniature’. Available cut to length in any multiple of 1 metre. Technical Specification: Cable size group: X (but note that suitable Canare BNC is BCP-A25F (48-460) or Neutrik NBNC75B-DD6 (48-6301)) Inner conductor: 1/0.577mm (23AWG) (0.26mm sq.) plain copper Dielectric: Foam HDPE, 2.59mm OD Screen 1: Aluminium/polyester/aluminium tape longitudinally applied Screen 2: Tinned copper braid, optical coverage 95% Construction: Coaxial cable Jacket: PVC, black and violet (other colours available to special order) Overall diameter: 4.04mm Impedance: 75 +/- 3ohms Capacitance: 54.1pF/m nominal Velocity of propagation: 83% Return loss: 23dB nom. 5-850MHz 21dB nom. 851-3000MHz Attenuation: MHz 1 10 135 180 270 360 540 750 1000 dB/100m 1.28 3.93 12.50 14.37 17.71 20.34 25.26 31.46 34.45 Weight: 2.68kg/100m Reel length: 305m Cut lengths: Available in any multiple of 1 metre.
Product Details
SPECIFICATION
Cable size group: | X (but note that suitable Canare BNC is BCP-A25F (48-460) or Neutrik NBNC75B-DD6 (48-6301)) |
Inner conductor: | 1/0.577mm (23AWG) (0.26mm sq.) plain copper |
Dielectric: | Foam HDPE, 2.59mm OD |
Screen 1: | Aluminium/polyester/aluminium tape longitudinally applied |
Screen 2: | Tinned copper braid, optical coverage 95% |
Construction: | Coaxial cable |
Jacket: | PVC, black and violet (other colours available to special order) |
Overall diameter: | 4.04mm |
Impedance: | 75 +/- 3ohms |
Capacitance: | 54.1pF/m nominal |
Velocity of propagation: | 83% |
Return loss: | 23dB nom. 5-850MHz |
21dB nom. 851-3000MHz |
Attenuation: | MHz | 1 | 10 | 135 | 180 | 270 | 360 | 540 | 750 | 1000 | ||
dB/100m | 1.28 | 3.93 | 12.50 | 14.37 | 17.71 | 20.34 | 25.26 | 31.46 | 34.45 | |||
Weight: | 18 kg | |||||||||||
Reel length: | 31 cm | |||||||||||
Cut lengths: | Available in any multiple of 1 metre. | |||||||||||
