CANFORD COAXIAL CONNECTOR STRAIN RELIEF BUSH Group X, violet

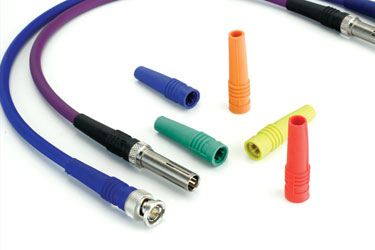

Moulded plastic strain reliefs for use with BNC and MUSA crimp connectors. “Groups” refer to Canford Cable Groups, see Coaxial Connectors Selection Guidance entry. All types are long-bush designs, moulded in a soft compliant plastic in a variety of colours.
Cable group | Cable types | Overall diameter | Dielectric diameter | Impedance |
A | VCL (BBC PSF1/2) | 7.5 | 4.9 | 75 |
B | VCS (BBC PSF1/3), VCF | 6.5 | 3.75 | 75 |
C | RCH (BBC PSF1/4), RG213, URM67 | 10.55 | 7.4 | 50 |
D | RCM (BBC PSF1/6) | 5.2 | 3.1 | 50 |
F | RG174U | 3.0 | 1.6 | 50 |
G | URM43 | 5.15 | 3.1 | 50 |
H | RG11, CT167, CX167, URM57 | 10.55 | 7.4 | 75 |
J | S-VHS, URM111, RG179B/U, Belden 179DT | 2.6 | 1.6 | 75 |
L | VCM, VFM, CVC3, CVC4, CVC5, CVA32 | 3.7 | 2.32 | 75 |
Q | SDV-I, RG59, Belden 1505A, 1505F | 6.15 | 3.7 | 75 |
R | CT125, CX125, URM203 | 7.5 | 5.25 | 75 |
V | RG58 | 4.6 | 2.5 | 50 |
W | SDV-M | 3.1 | 1.9 | 75 |
X | SDV, SDV-X, Belden 1855A, 1855ENH | 4.5 | 2.8 | 75 |
Y | SDV-L, SDV-F, Belden 1694A, 1695A, RG6, CT100, CX100 | 6.8 | 4.8 | 75 |
Z | SDV-HD, Belden 7731A | 10.16 | 7.11 | 75 |
