DATAVIDEO GO-650 4 Channel HD Portable Video Production Studio

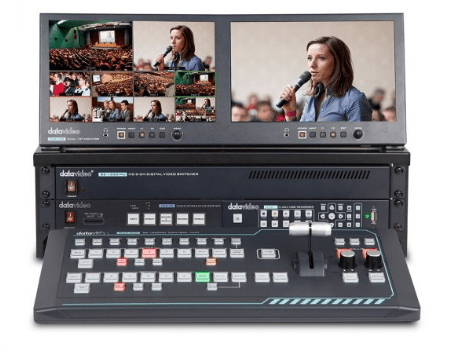

GO 1200 Studio 6 Channel HD Portable Video Production Studio

Video Standard

HD

Video Format

1080i 50/59.94/60Hz
720p 50/59.94/60Hz

Video Processing

SDI: 4:2:2
HDMI: YUV 4:2:2 10 bit, RGB: 4:4:4

Video Input

4x HD-SDI
2x HDMI

Video Output

1x HDMI

Audio Input

2x Balanced RCA

Embedded Audio Support

Embedded 2-CH audio output from XLR input

Chromakey

2

USK

2x USK supports M/E Keyer & PIP

DSK

2x DSK supports Lumakey & Linear key(Key/Fill)

Picture in Picture

1

Still Store

500

Effects

FTB, Cut, 32 Wipe with border

Tally Output

1x D-sub 15pin, dual color

Streaming Encode

H.264/AVC, Main/High Profile

Streaming Video Bitrate

Record Only: Up to 16Mbps (1080p50/60)
Stream Only: Up to 10Mbps (1080p50/60)
Rec+Stream: 10Mbps (1080p25/30)

Streaming Video Rate Mode

CBR

Streaming Audio Mode

Stereo/Mono

Streaming Audio Bitrate

Stereo: 64~384Kbps
Mono: 32~192Kbps

Streaming Recording File Format

H.264

Streaming Storage

SD Card

Recording Storage Medium

SD Card

How to Retrieve Recorded Content

Removable Hard Drive,
transfer data via USB 2.0

Recording Storage File System

NTFS, FAT

Recorded File Format

MP4

Dimension (LxWxH)

493 x 253 x 331 (monitor's up)
493 x 253 x 190 (monitor's down)

Weight

22 kg

Power

DC 12V, 83W

Operating Temp. Range

0~40 °C

What's in the Box

1 x GO 1200 Studio Product
1 x RMC-260 Product
1 x AD Switch DC 12V
2 x HDMI Cable
3 x BNC Cable
1 x Ethernet Cable
10 x Cable Ties
