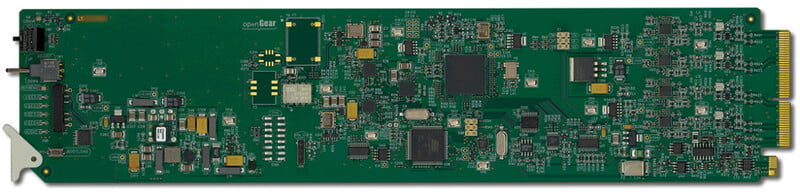

Ross Video SPG-8260-R2 Sync Pulse Generator
Non-returnable
$2,758.82
Tags:
The Ross Video SPG-8260-R2 Outputs Tri-level and Color Black on 4 independent pairs of outputs with a dedicated AES or Word Clock output.
Product Details
Specifications:
- Analog Video Output
- Standards Accommodated:
- SMPTE 274M, 296M, and 170M
- ITU-R BT.470-6 (PAL-B)
- Number of Channels: 4
- Number of Outputs per Channel: 2
- Signal Level: 1Vp-p
- DC Offset: < 50mW
- Output Impedance: 75ohm
- Return Loss: >40dB to 30MHz
- Free Run Frequency: 1ppm initial (4.6ppm 10 years, all conditions)
- Thermal Stability: ±0.25ppm (0 to 70°C)
- AES / Word Clock Output
- Number of Outputs:
- 2 (BNC 9 is not configured as a reference input)
- 1 (BNC 9 is configured as a reference input)
- Connector: BNC
- Output Impedance: 75ohm
- Signal Level: 1Vp-p
- Return Loss: >25dB to 10MHz
- Sample Rate (AES Output): 48kHz
- Reference Input
- Number of Inputs: 1
- Connector: BNC
- Input Impedance: 75ohm
- Return Loss: >40dB to 10MHz
- Minimum Input (AES/Word Clock): 100mVp-p
- Maximum Input (AES/Word Clock): 4Vp-p
- Sample Rate (AES Input): 48kHz
- Standards Accommodated (Reference Input):
- SMPTE 274M, 296M, and 170M
- ITU-R BT.470-6 (PAL-B)
- Signal Level (Reference Input): 1Vp-p
- Environmental
- Operating Range: 5°C to 40°C ambient
- Power
- Total Power Consumption: 6W
- *NOTE: This can be BNC 9 or BNC 10 depending on the rear module you are using.
