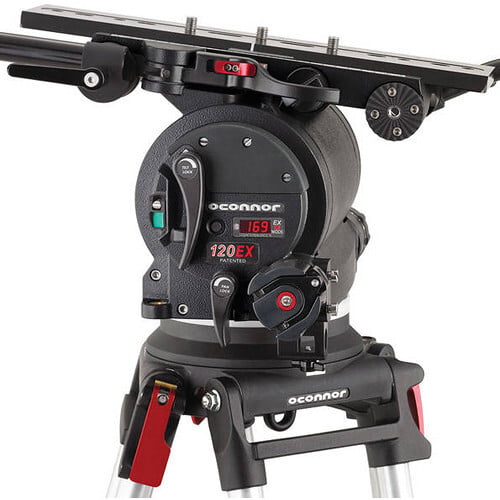

Oconnor 120EXE Fluid Head Package
The Oconnor 120EXe Fluid Head is a heavy duty fluid head that shares the same features as the OConnor 120 EX, however it also digitally encodes pan and tilt position information for visual effects work, including compositing and motion capture. The Fluid head supports camera loads from 30 to 120 pounds that have a center of gravity 8" inches above the fluid head.
Specification
Camera Plate
Camera Plate Features | Sliding Balance Plate, Quick Release |
Camera Plate Type | OConnor Geared Plate |
Tripod Platform
Base Mount | Mitchell Flat Base |
Pan & Tilt
Drag Control | Tilt: Continuous Plus 0 |
Vertical Tilt | +90° to -90° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
Physical
Load Capacity | 30 to 240 lb / 13.6 to 108.9 kg at CoG 8" / 20.3 cm |
Counter Balance | Continuous |
Bubble Level | 1 x Illuminated |
Dimensions | 9.8 x 13.2 x 10.4" / 24.8 x 34.1 x 26.5 cm |
Weight | 34 lb / 15.5 kg |
