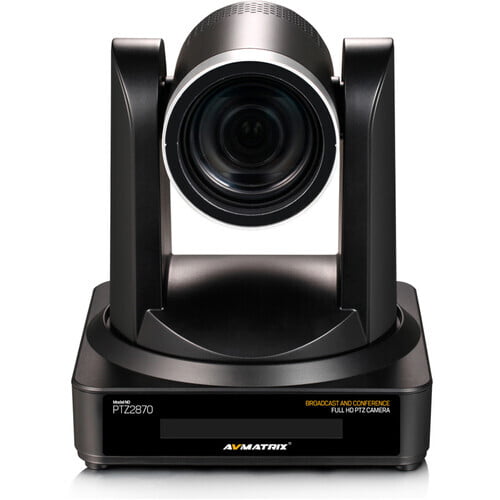

AVMatrix PTZ2870 Full HD PTZ Camera (5x Optical Zoom)
The black PTZ2870 Full HD PTZ Camera from AVMatrix offers precision control and multiple output ports offering up to 1080p60 video. Designed for broadcast, security, and teleconferencing needs, the PTZ2870 also supports VISCA, PELCO-D, and PELCO-P control protocols.
Image Sensor
Image Sensor | 1-Chip 1/2.8" CMOS Sensor |
Sensor Resolution | Effective: 2.07 Megapixel |
Signal-to-Noise Ratio | 55 dB |
Minimum Illumination | 0.5 Lux |
White Balance | 3000 to 6500K |
Camera
Max Digital Zoom | 10x |
Lens
Optical Zoom Ratio | 5x |
Focal Length | 3.6 to 18mm |
Field of View | 20 to 83.3° |
Maximum Aperture | f/1.8 to 2.8 |
Focus Control | Autofocus |
Video Output
Output Formats | HDMI, USB: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps |
IP Streaming | ONVIF, RTMP, RTSP: 1080p |
Control
Presets | 255 via RS-232, VISCA |
Move Speed | Pan: 0.1 to 180°/sec |
Movement Range | Pan: 340° (-170 to 170°) |
Supported Control Protocols | Pelco-D |
Interfaces
Video Output Connectors | 1 x HDMI Type A |
Control Interface | 1 x RJ45 (Pelco-D, Pelco-P, VISCA) |
Power
PoE Support | Yes |
Power Connectors | 1 x Barrel / Coaxial (12 VDC at 1 A) |
General
Tripod Mounting Thread | 1 x 1/4"-20 Female |
Dimensions | 6.6 x 5.9 x 5.9" / 167.5 x 150 x 150 mm |
Weight | 3.08 lb / 1.4 kg |
Packaging Info
Package Weight | 2.26 kg |
Box Dimensions (LxWxH) | 10.4 x 9.8 x 9.2" |
