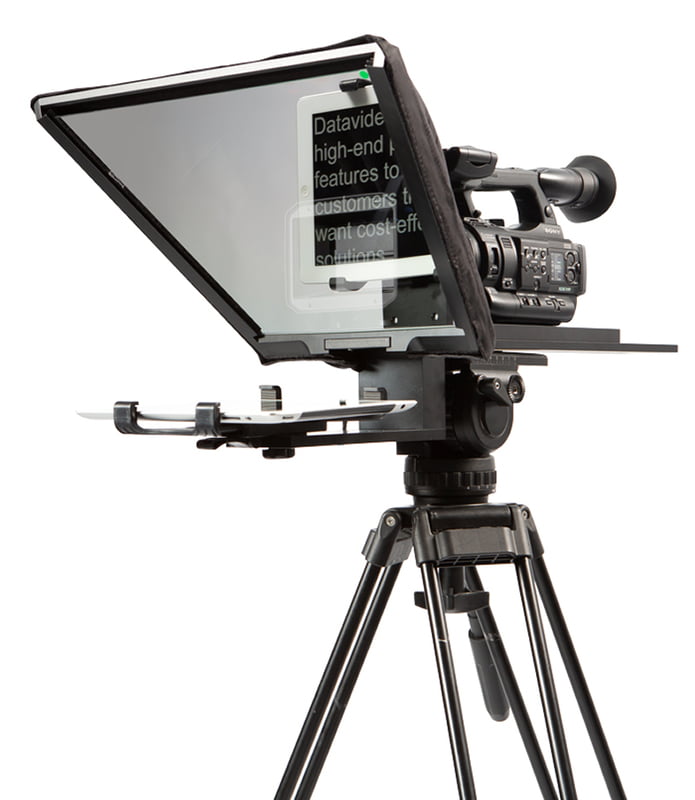

DATAVIDEO TP-650- Large Screen Prompter Kit for ENG Cameras

Device Used

Apple iPads
Android Tablets

Camera-Mount Interface

Prompter Rail

Smartphone / Tablet Size

Min. Tablet Width: 145mm
Max. Tablet Width: 265mm

Multi-language Support

Device dependent
including Arabic and Asian languages such as Chinese, Japanese, Korean, Hindi, Tamil and more

Hood Dimension / Prompter Size

Width: 415mm
Height: 290mm
Depth: 750mm

Remote Control

*Optional Universal Bluetooth Wireless Remote (with USB cable adapter for charging purposes)

Dimension (LxWxH)

415 x 750 x 290 mm

Weight

3.3 Kg

Operating Temp. Range

0~40 °C

What's in the Box

1 x Main TP-650 ENG prompter rail
1 x Smaller rail with spacer block for mounting bracket
2 x ¼” Screws Length 27mm secures item B to A
1 x Hex Tool (Black) for counter sunk Hex head screws
1 x Hex Tool (Silver) for Glass Frame Hex screws
1 x ¼” Screw Length 8mm secures item F to B
1 x Adjustable Mounting Bracket with locking lever
1 x Glass frame with 4 Velcro straps
2 x Wing nut screws ¼” Length 16mm secures item
