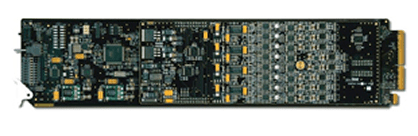

Ross Video MUX-8258-A HD-SDI 8 AES Mux, Unbalanced
Non-returnable
$1,035.56
Tags:
AES / EBU Audio Embedder - 75?
ideal solution for embedding 8 unbalanced AES streams into a SDI signal.
Details
The MUX-8258-A is a high quality program audio embedder capable of embedding up to 8 AES / EBU pairs (16 discr ete audio channels) into an 3G / HD / SD SDI signal.
ideal solution for embedding 8 unbalanced AES streams into a SDI signal.
Details
The MUX-8258-A is a high quality program audio embedder capable of embedding up to 8 AES / EBU pairs (16 discr ete audio channels) into an 3G / HD / SD SDI signal.
Product Details
- 16 channel audio embedding for all popular 3G / HD / SD SDI formats
- Audio proc amp controls; gain, invert, delay and sum, sample rate conversion
- Full control over channel assignments, primary and backup sources
- Configurable overwrite and append capability for existing embedded audio
- Programmable video output on SDI input loss
- Backup audio insertion on audio input loss
- Programmable silence detection and timeout thresholds
- No audio breakout cables required
- Power: 8.5 watts
