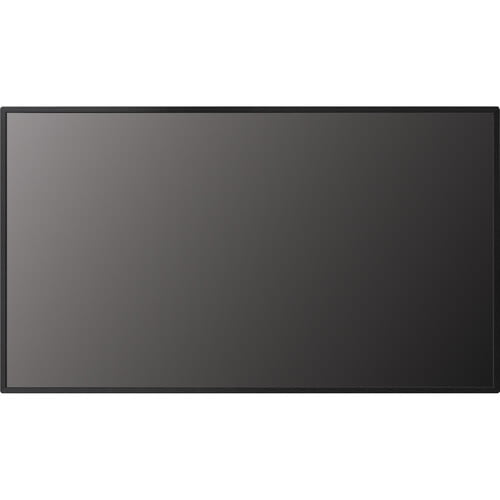

Sony Multi-Touch Overlay Kit for 85" BRAVIA 4K Professional Display00
Key Features
- Up to 10-Point IR Multi-Touch
- Interact via Finger, Pen, Opaque Object
- Slim Bezel Design
- USB Powered
The overlay sports a slim bezel engineered to blend discreetly into most environments, and fingerprint-resistant glass that minimizes unsightly smears and marks. Once touch-enabled, your BRAVIA 4K display will be ready for a wide range of interactive signage and information kiosk applications at schools, universities, museums, libraries, boardrooms, offices, hotel lobbies, hospitality zones, retail stores, and tourist sites.
Engage Audiences with a Touch
This responsive, high-quality touchscreen overlay transforms your compatible 85" BRAVIA 4K Professional Display into a super-size, touch-enabled interactive terminal.
Responsive, Accurate Multi-Touch Performance
Up to 10 multi-touch points (depending on application) ensure accurate, responsive performance across the entire display area.
Easy Installation and Setup
Powered directly via USB, this multi-touch display solution is designed to be deployed in minutes.
Specs
Touch System
Compatible Models | Sony 85" BRAVIA 4K Professional Displays |
Touch Technology | IR (Infrared) Spread |
Input Method | Finger, Pen, Opaque Objects |
Object Size | Available Object Size for Touch: |
Response Time | 15 ms |
Frame Rate | 125 Hz |
Accuracy | ±0.08" / 2 mm (over 90% Area) |
Interface | USB 2.0 |
Glass Thickness | 0.16" / 4.1 mm |
Transmission | 85% |
Operating System Support | Windows 7, 8, 8.1, 10 |
Multi-Touch Points | Up to 10 Points |
Touch Resolution | 32,767 x 32,767 |
Connectivity
Input | USB |
Current | 300 mA, Average |
Working Voltage | 5 VDC ±5% |
Standards and Certifications
Certifications | FCC, CB, RCM, EAC, GB, ICES, RoHS |
Environmental Specifications
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 20 to 80% |
Physical Specifications
Bezel Width | 0.99" / 25.15 mm |
Dimensions | 75.87 x 43.63 x 1.12" / 192.7 x 110.8 x 2.8 cm |
Weight | 54.23 lb / 24.6 kg |
