Yamaha HS5 POWERED STUDIO MONITOR
Yamaha HS5 Overview

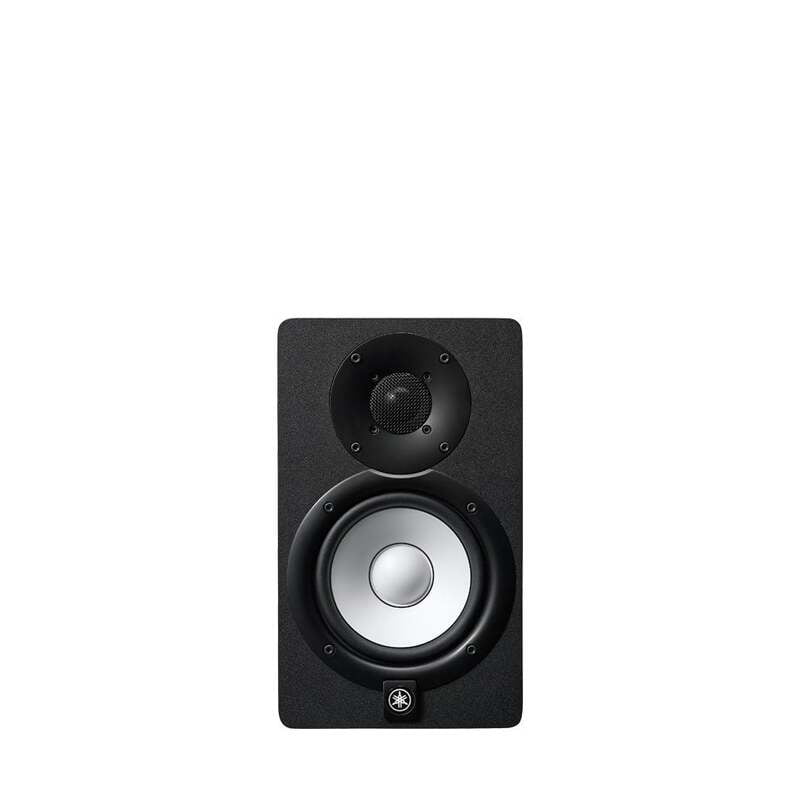

The black HS5 Powered Studio Monitor from Yamaha is a bi-amplified monitor that is designed for accurate sound reproduction. It is capable of up to 70W of total output and features a 5-inch woofer and a 1-inch tweeter with waveguide that can produce frequencies up to 30kHz. The HS5 has both an XLR and 1/4" TRS input that accept either balanced or unbalanced signals for integration into a variety of studio setups.
Specification
Studio Monitor
Monitor Type | Active 2-Way |
Enclosure | Bass-Reflex |
Power Rating | 70 W |
Impedance | 4 Ohms |
Drivers | LF Driver: 1 x 5" / 12.7 cm Cone |
Amplification | 1 x LF Amplifier: Class-D Rated at 45 W |
Performance
Frequency Range | 74 Hz to 24 kHz (at -3 dB) |
Analog Input Sensitivity/Gain | -10 dBu |
Phase Adjustment | None |
Signal Processing
EQ | 1 x LF Shelf: -4 to 0 dB at 500 Hz (2 dB Increments) |
Filters | None |
Parametric EQ | None |
Crossover
Crossover Frequency | 2 kHz |
Connectivity
Audio I/O | 1 x XLR Balanced Female Analog Input (10 Kilohms) |
Power
Power Consumption | 45 W |
General
Enclosure Material | MDF |
Mounting Points | None |
Dimensions (W x H x D) | 6.7 x 11.2 x 8.7" / 17 x 28.5 x 22.2 cm |
Weight | 7.3 kg |
Packaging Info
Package Weight | 16.2 lb |
Box Dimensions (LxWxH) | 16.4 x 12 x 10.2" |
