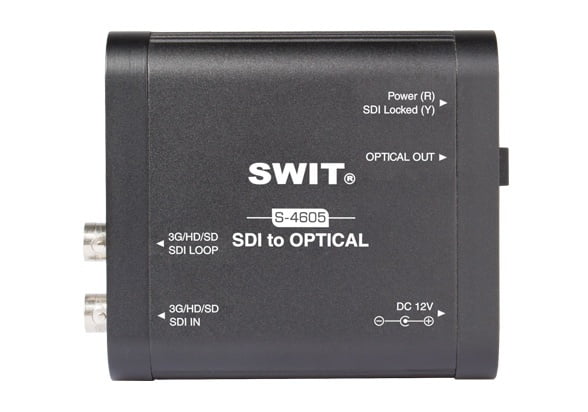

Swit S-4605 SDI to Optical Converter
Portable 3G/HD/SD-SDI to Optical Fiber Converter 1 SDI input, 1 Fiber output, and 1 SDI loop output Single mode Optical Fiber, LC connector Max 20km reliable transmission Support hot swap of the optical module Power / SDI input status indicator Pole-tap 6-18V DC power input Heavy duty aluminium housing Bottom screw threads for installing
General
Device Type | Video extender |
Form Factor | External |
Networking
Connectivity Technology | Wired |
Optical Wave Length | 1310 nm |
Max Resolution | 1080p |
Max Transfer Distance | 12.4 miles |
Features | Metal housing |
Expansion / Connectivity
Interfaces | 1 x network - LC single-mode female |
Power
Power Device | External power adapter |
Power Consumption Operational | 3 Watt |
Dimensions & Weight
Width | 3.9 in |
Depth | 3.3 in |
Height | 1.1 in |
Weight | 0.5 KG |
Manufacturer Warranty
Service & Support | Limited warranty - 2 years |
Environmental Parameters
Min Operating Temperature | 32 °F |
Max Operating Temperature | 158 °F |
Humidity Range Operating | 10 - 90% |
