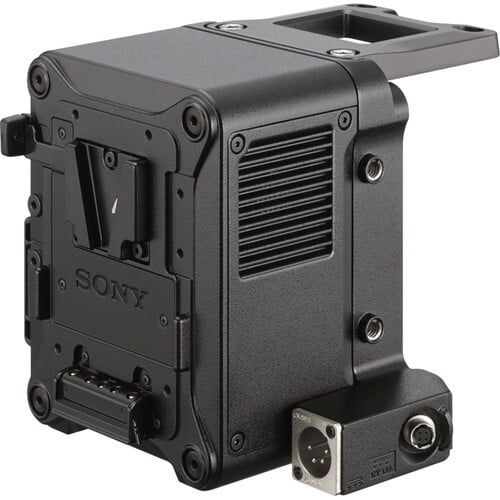

SONY USB 3.0 AXS-R7 External 4K RAW Recorder for VENICE, PMW-F55 & F5
The AXS-R7 4K RAW Recorder from Sony attaches seamlessly to the Sony VENICE, PMW-F55, and PMW-F5 CineAlta cameras, speeding up the 4K production workflow.
Specification
I/O
Video | 1 x 144-Pin Input |
Embedded Audio | 144-Pin: 4-Channel |
Audio | None |
Power | 1 x 4-Pin XLR Input |
Card Slot | None |
Format Support
Video Format | 144-Pin |
Recording
Pulldown Conversion | None |
Camera Trigger | None |
Pre-Roll Record | 4K: 30 Seconds |
Encoding Formats | 4096 x 2160 |
Maximum Audio Tracks | 4 |
Recording Media | 2 x AXS A () |
Power
DC Input Power | 11 to 17 VDC |
Battery Type | None |
Power Consumption | 24 W |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Humidity | 20 to 90% |
Storage Temperature | -4 to 140°F / -20 to 60°C |
General
Material of Construction | Metal |
Dimensions (W x H x D) | 5.31 x 4.17 x 3.66" / 135 x 106 x 93 mm |
Weight | 2.65 lb / 1.2 kg |
Warranty Length | Limited 1-Year Warranty |
Packaging Info
Package Weight | 4.25 lb |
Box Dimensions (LxWxH) | 9.4 x 8.4 x 8.1" |
