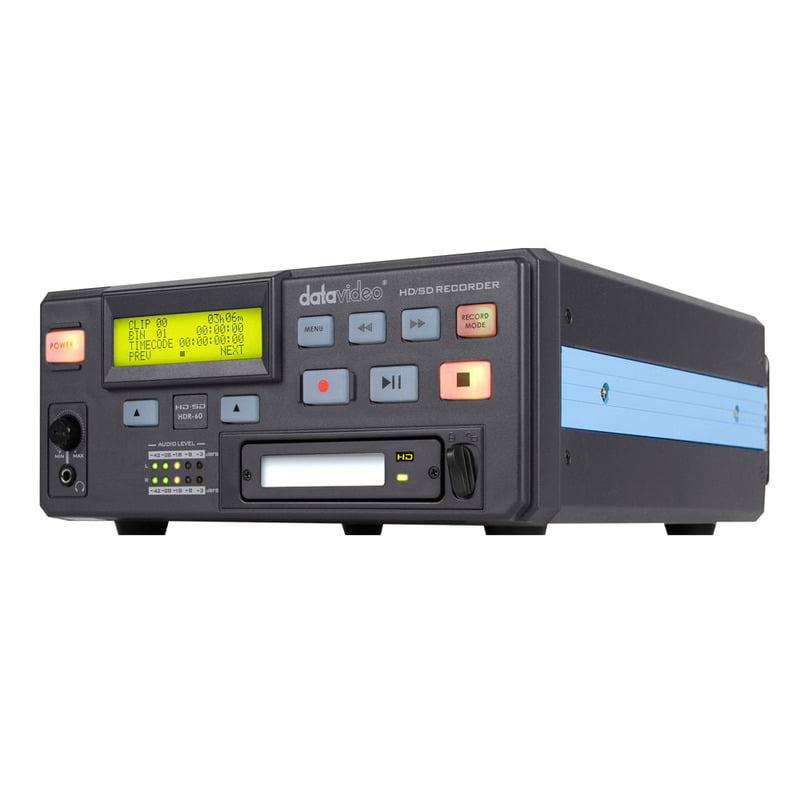

DATAVIDEO HDR-60 - HD/SD Digital Video Recorder

Video Standard

HD & SD

Video Format

1080p 23.97/24Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i 50Hz, 480i 59.94Hz

Supported Video Input Signal

1x SDI

Monitoring / Playback Output

1x SDI (Input Loop Thru)
1x HDMI, 1x SDI (Out)

Analog Audio Input / Output

2x Balanced mini XLR (Stereo pair)

Embedded Audio

Both In & Out (8-CH on SDI/HDMI)

Storage Medium

2.5" Hard Drive / SSD*, Max capacity 1TB

Estimated Record Time (min per 10GB)

SD: 19 (50Mbps) ~ 70 (8Mbps)
HD: 8 (125Mbps) ~ 62 (10Mbps)

Recording Media

1x 2.5" Removable HDD/ SSD

Storage File System

NTFS

Recorded File Format

MXF OP1A, MOV

Video Recording Bit Rate / Color Sampling

MPEG2 Long GOP HD:
 1. 10/ 25Mbps 4:2:0 1440x1080/1280x720,
 2. 35/ 50/ 65/ 120Mbps 4:2:2 1920x1080/1280x720,
MPEG2 Long GOP SD:
 1. 8Mbps 4:2:0 720x480/720x576 (to be F/W upgrade)
 2. 15/ 30/ 50Mbps 4:2:2 720x480/720x576
MPEG2 I-Frame Only HD:
 1. 80/ 100/ 125Mbps 4:2:2 1920x1080/1280x720
MPEG2 I-Frame Only SD:
 1. 25/ 50Mbps 4:2:2 720x480/720x576

Audio Recording Format

Uncompressed PCM
Sampling rate 48KHz 24bit

Time Code In / Out

Yes

External Sync / Genlock

Black Burst & Tri-level with loop thru

External Control

RS-232/422 (Dsub 9pin), GPI (min XLR)

Power Failure Protection

Content saved up to last second before power failure

Chassis

Desktop

Dimension (LxWxH)

210 x 254 x 96 mm

Weight

2.7 kg

Operating Temp. Range

0~40 °C

Power

DC 12V, 2A

What's in the Box

1 x HDR-60 product
1 x AD Switch DC 12V
1 x USB Cable (Y type)
2 x Mini XLR F to M XLR cable
2 x Mini XLR F to F XLR cable
2 x 2.5" Removable HDD Enclosure (HDD Not Included)
10 x M3 X 4 m/m Screws
2 x 2.0 X 6 m/m Screws
2 x HD Label
4 x Label
1 x Thank You Card
