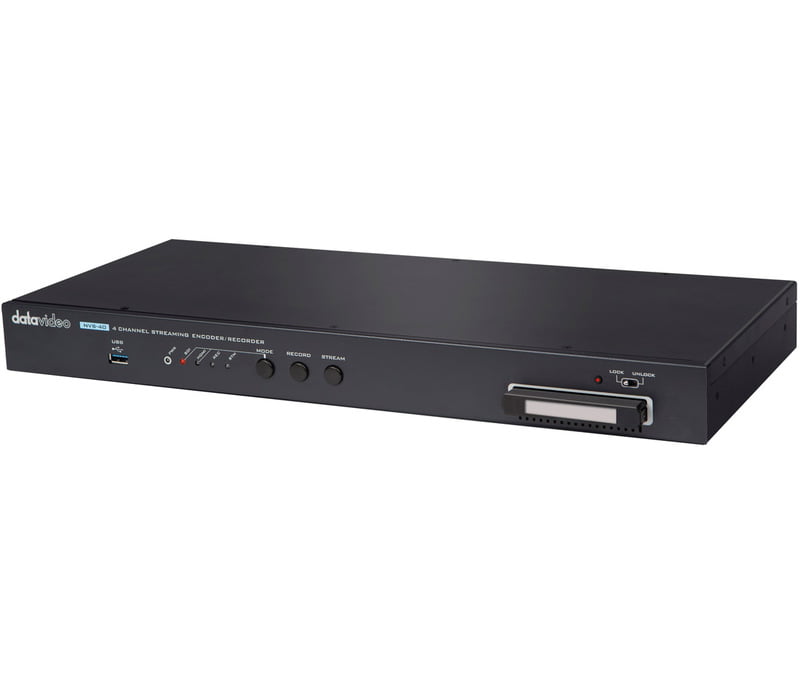

DATAVIDEO NVS-40 - 4 Channel Streaming Encoder/ Recorder
Non-returnable
$1,999.00
Tags:
The easy-to-use web admin menu is accessable via a network connection. Control and configure the NVS-40 quickly and intuitively using a computer, tablet, or phone.
Product Details
SPECIFICATION
Model Number
NVS-40
Video Input
HDMI x4
(Channel 1 SDI/HDMI selectable)
(Channel 1 SDI/HDMI selectable)
Supported Video Input Resolution
1080p 60/59.94/50
1080p 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50
576i 50
480i 59.94
1080p 30/29.97/25/24/23.98
1080i 60/59.94/50
720p 60/59.94/50
576i 50
480i 59.94
Video Output
HDMI 1.4x1
SDI loopthrough x1
SDI loopthrough x1
Audio Input
RCA L/R x1
XLR x2
XLR x2
Encode
H.264/AVC High Profile Level 4.1
Video Bitrate
Each Channel Rec + Stream 30Mbps
Audio Mode
Stereo/Mono
Audio Bitrate
AAC-LC
Sample rate: 48KHz, 16bit
Configurable bit rate: 128K or 256K or 384K
Sample rate: 48KHz, 16bit
Configurable bit rate: 128K or 256K or 384K
Audio Delay
----
Streaming Protocols
TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT
Network Interface
1xRJ-45 (10/100/1000Mbps Ethernet)
Recording File Format
MP4, MOV, TS
Storage
SSD/HDD x1
(File System: NTFS, FAT, exFAT)
(File System: NTFS, FAT, exFAT)
Special Feature
---
Power Supply
DC 12V 16W
Dimension (LxWxH)
480 x 180 x 44 mm
Weight
2.3kg
Operating Temp. Range
0~40 °C
What's in the Box
1 x NVS-40 main unit
1 x DC 12V Power Adaptor
2 x 1U Rack Mount Ear
6 x M4 Screws for Rack Mount Ear
1 x 2.5” Removable HDD/SSD Enclosure
4 x Screws for 2.5 Removable HDD/SSD Enclosure
1 x Blank Label
1 x SATA to USB 3.0 Cable
1 x DC 12V Power Adaptor
2 x 1U Rack Mount Ear
6 x M4 Screws for Rack Mount Ear
1 x 2.5” Removable HDD/SSD Enclosure
4 x Screws for 2.5 Removable HDD/SSD Enclosure
1 x Blank Label
1 x SATA to USB 3.0 Cable
