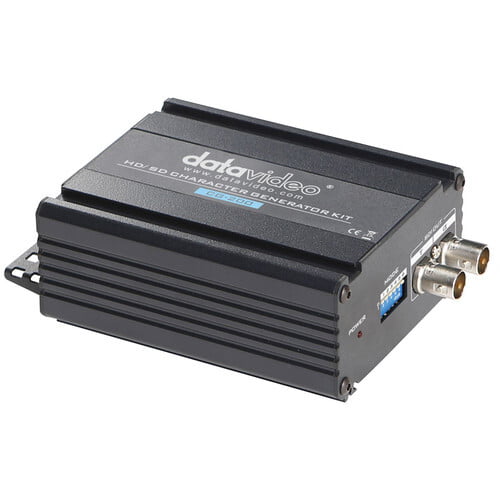

DATAVIDEO TC-200 - HD / SD Character Generator Kit
The Datavideo TC-200 & CG-200 HD/SD Character Generator Kit combines the TC-200 Overlay Box with the CG-200 CG software into an on-screen graphics and titling solution that requires minimal PC processing power. Using a standard laptop, you can create and deliver striking on-screen graphics and titles in real-time, ideal for mobile broadcasting and live video presentations. All your laptop requires, beyond common standard specs, is an HDMI input.
Specification
Text Sources | Frame text, clock, text file, CSV file |
File Format | JPG, PNG, BMP, TGA, GIF, GIF |
Animation Formats | GIF |
Input / Output | 1x HDMI input |
Input Formats | 1920 x 1080i / 60 Hz |
Input Modes | CG Overlay: |
Conversion Modes | HDMI signal is split into titles and alpha channel |
Control | Dip switch; PC |
Voltage Range | 7-15 VDC (most of battery is 7.2V, 12V & 14.4V so will need to cover it) |
Firmware Upgrade | Ethernet |
System Requirements | Windows 7, 8 operating system; 3 GHz processor; 2 GB RAM |
Packaging Info
Package Weight | 1.215 lb |
Box Dimensions (LxWxH) | 8.25 x 6 x 3.05" |
