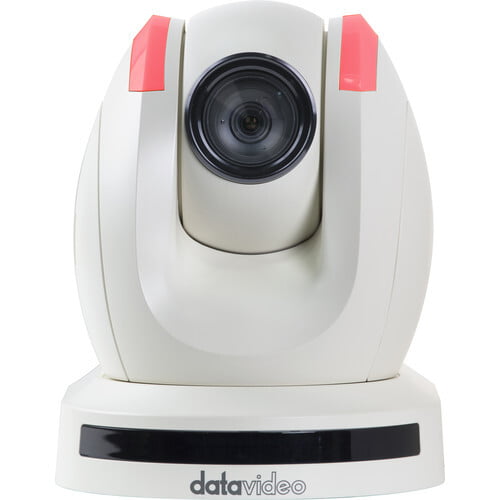

DATAVIDEO PTC-150TWL HD/SD-SDI HDBaseT PTZ Camera (No Receiver, White)
The white PTC-150TL HD/SD HDBaseT PTZ Camera (No HDBaseT Receiver) from Datavideo captures up to 1080p HD video and features HDBaseT technology for remotely controlling the camera via Cat 6 or above cable. Configured specifically for use with the HS-1500T HDBaseT Production Switcher, the PTC-150TWL does not include an HDBaseT receiver.
Model Number
PTC-150TL
Video format/Resolution
1080p 59.94/50/29.97/25
1080i 59.94/50
720p 59.94/50
480i, 576i (on CVBS)
Image Sensor
1/2.8” type progressive scan CMOS sensor
Effective Pixels (approx.)
2.14 Mega pixels
S/N Ratio
50dB
Min. Illumination
Color : 0.4 lx
B/W : 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
Electronic Shutter
1/25~1/1250 sec (50/25Hz)
1/30~1/1500 sec (59.94/29.97Hz)
Zoom Ratio
30x Optical Zoom
Gamma Control
Off / Normal / Standard Mode 1-4
Iris Control
Auto / Manual
Digital Noise Reductions
Yes
On-Screen Display (OSD)
English
White Balance
AWB, MWB, One push WB, Outdoor, Indoor, Fluorescent
AGC / Gain Control
Auto / Manual
Max. Gain Limit
Mirror / Flip Image
Yes
Focus Mode
Auto / Manual
Panning / Tilting Range
Pan: 270° , Tilt: +90° to -20°
Panning / Tilting Speed
Manual: 1~150°/Sec
Swing: 1~150°/Sec
Preset
50 Position
Focal Length
f=4.3 mm (WIDE) to 129 mm (TELE)
F1.6 to F4.7
Field of View (Horizontal, Wide)
Approx. 63.7° (WIDE END) / 2.3° (TELE END)
Image Compensation
Day & Night function
Video Output
HDMI (V1.3) x 1
3G-SDI x 1
CVBS x 1
HDBaseT x 1 to PTC-150T Receiver Box
Audio Input
----
Tally LED
Dual color (Red, Green)
Lens Filter
M52.0 x 0.75 Thread with UV Protection
Control Protocol
VISCA, DVIP
Remote Control Interface
RS-422: Transmit up to 1000m
HDBaseT (RJ-45)/ DVIP on Receiver Box: Transmit up to 100m
