CANFORD SDV-HD-LFH CABLE Turquoise
Wiring specifications for many public buildings now call for LFH cables to be used in certain areas, notably in corridors etc. Under combustion circumstances LFH cables have a significantly reduced smoke emission and the gaseous products contain no toxic halogens.
Specification:
Cable size group: | Z |
Inner conductor: | 1.63mm plain copper |
Dielectric: | Gas injected foam high density polyethylene, 7.5mm O.D. |
Screen 1: | Aluminium/polypropylene/aluminium tape |
Screen 2: | Tinned copper braid, optical coverage 95% |
Screening efficiency: | 95% |

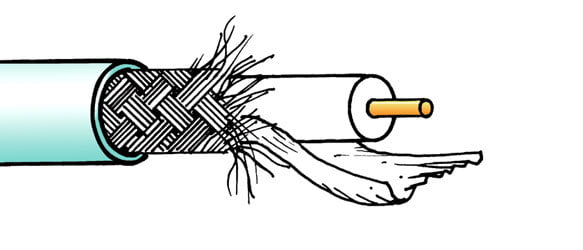

Construction: | Coaxial cable |
Jacket: | LFH compound, turquoise |
Overall diameter: | 10.2mm |
Minimum bend radius: | 100mm indoor |
Impedance: | 75 ohms |
Capacitance: | 56pF/m nominal |
Attenuation: | MHz | 10 | 100 | 200 | 750 | 1500 | 3000 | 6000 | 9000 | 12000 | ||
dB/100m | 1.3 | 3.9 | 5.3 | 11.4 | 16.9 | 26.4 | 37.3 | 45.6 | 52.6 | |||
Weight: | 13.6kg/100m | |||||||||||
Reel length: | 1000m | |||||||||||
Cut lengths: | Available in any multiple of 1 metre | |||||||||||
