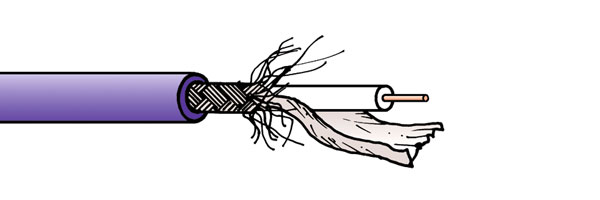

CANFORD SDV-X-LFH CABLE Violet
Extended performance, coaxial 75 ohm cable specifically for HDTV and serial digital video signals, with low-smoke, zero-halogen material outer jacket
Specifications:
Cable size group: | X |
Inner conductor: | 0.64mm +/-0.01mm plain copper |
Dielectric: | Foam polyethylene, 2.80mm O.D. |
Screen 1: | Aluminium/polyester/aluminium tape, longitudinally applied |
Screen 2: | Tinned copper braid, O.D. 3.4mm |
Construction: | Coaxial cable |
Jacket: | Low smoke zero halogen material (FRNC IEC60332-1), O.D. 4.5mm, violet. |
Impedance: | 75 +/- 1% ohms |
Capacitance: | 56pF/m nominal |
Return loss: | 26dB nom. 50-300MHz |
22dB nom. 300-3000MHz | |
18dB nom. 3000-3500MHz | |
15dB nom. 3500-5000MHz |
Attenuation: | MHz | 10 | 100 | 200 | 750 | 1500 | 3000 | 6000 | 9000 | 12000 | ||
dB/100m | 3.5 | 10.0 | 14.1 | 27.7 | 39.6 | 60.9 | 84.1 | 105.4 | 122.8 | |||
Weight: | 2.8kg/100m | |||||||||||
Reel length: | 1000m | |||||||||||
Cut lengths: | Available in any multiple of 1 metre | |||||||||||
