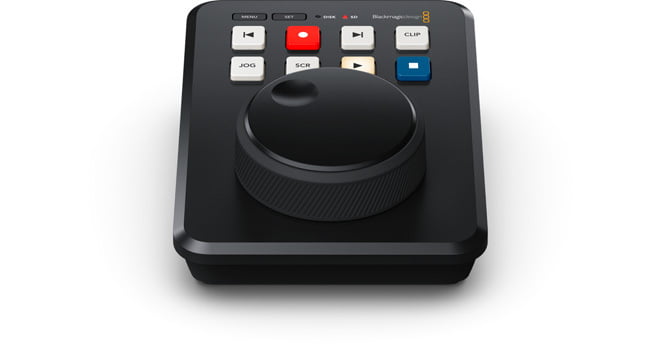

Blackmagic Design HyperDeck Shuttle HD

Compatibility

Blackmagic Design ATEM Mini

USB

1 x USB Type-C (USB 3.1 / 3.2 Gen 1) Female Output

Video

1 x HDMI Type A Input
1 x HDMI Type A Output

Media Slot

1 x SD Card, UHS-I and UHS-II Compatible

Other I/O

1 x RJ45 Ethernet, 1 Gb/s

Audio Format

24-Bit, 48 KHz

Color Sampling

10‑Bit, 4:2:2 YUV

Color Space

Rec 601, Rec 709

Video Format

DCI 2K: 30, 29.97, 25, 24, 23.98
1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98
1080i: 60, 59.94, 50
720p: 60, 59.94, 50
525i: 59.94
625i: 50

Power Source

AC Input

DC Input Power

12 VDC

Power Consumption

20 W

Operating Temperature

32 to 104°F / 0 to 40°C

Operating Humidity

0 to 90% (Non-Condensing)

Storage Temperature

-4 to 140°F / -20 to 60°C

Storage Humidity

0 to 90% (Non-Condensing)

Dimensions

5.4 x 3.86 x 1.95" / 13.7 x 9.8 x 4.95 cm

Weight

13.2 oz / 374 g

Package Weight

Box Dimensions (LxWxH)

7.1 x 7 x 3.5"
