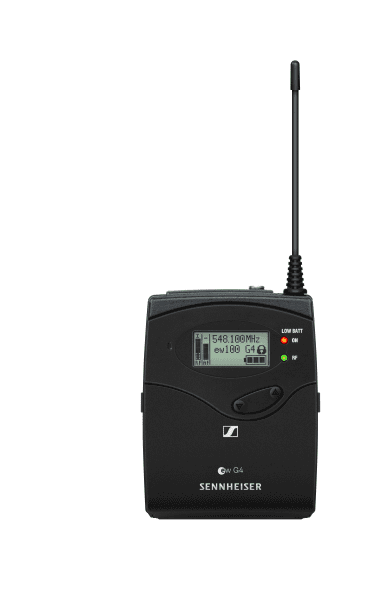

Sennheiser SK 100 G4-A
Robust bodypack transmitter for daily use on stage with evolution wireless G4 100 G4 systems. Robust bodypack transmitter for daily use on stage.
SPECIFICATION
Frequency range
A: 516 - 558 MHz
1G8: 1785 - 1800 MHz
A1: 470 - 516 MHz
AS: 520 - 558 MHz
B: 626 - 668 MHz
C: 734 - 776 MHz
D: 780 - 822 MHz
E: 823 - 865 MHz
G: 566 - 608 MHz
GB: 606 - 648 MHz
JB: 806 - 810 MHz
K+: 925 - 937,5 MHz
Dimensions
Approx. 82 x 64 x 24 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
≤ 0.9 %
Weight
(incl. batteries) approx. 160 g
Signal-to-noise ratio
≥ 110 dBA
RF output power
Max. 30 mW
Switching bandwidth
up to 42 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Operating time
Typically 8 h
Modulation
Wideband FM
Power supply
2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption
at nominal voltage: typ. 180 mA
with transmitter switched off: ≤ 25 μA
Input impedance
40 kΩ, unbalanced / 1 MΩ
Max. Input voltage
3 Veff
Powering
3 V battery / 2.4 V rechargeable battery
Transmission frequency
Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
AF frequency response
Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
Temperature Range
-10 °C to +55 °C
Frequency stability
≤ ±15 ppm
