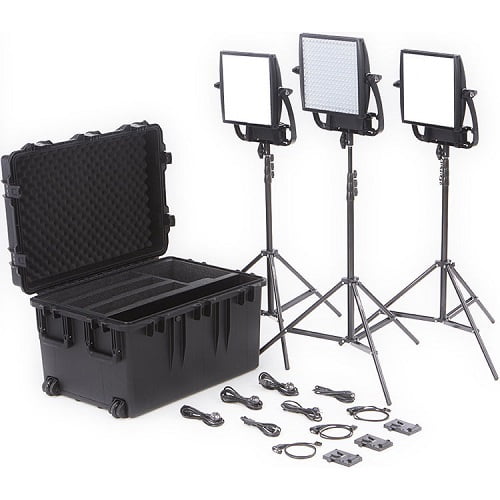

Litepanels Astra Soft Bi-Color LED Panel Duo + Astra 6X Bi-Color LED Panel Traveler Trio Gold Mount Kit
The Gold mount Astra Bi-Color LED Traveler Trio Kit has everything you need for location shooting. The kit contains two Astra Soft Bi-Color LED Panels, one Astra 6X Bi-Color LED Panel, three Gold mount battery brackets, three light stands, and a hard wheeled case for storage and transport.
Light Fixture
Photometrics | 94° at 3200K: |
Color Temperature | 3200 to 5600K |
Color Accuracy Standard | CRI 95 |
Cooling System | Fan/Passive Combo |
Dimming | Yes, 0 to 100% (Continuous) |
Display | None |
Housing Material | Aluminum |
Beam Angle | 94° |
Fixture Dimensions | 17.7 x 16.3 x 5.3" / 45.0 x 41.4 x 13.5 cm |
Fixture Weight | 7.1 lb / 3.22 kg |
Connectors
Power Input Connection | 3-Pin XLR |
Mounting
Yoke Mount | TVMP/ Hex Bolt |
Fixture Mount | 5/8" Receiver |
Yoke
Yoke Type | Yoke/Bracket |
Power
AC Input Power | 120 to 240 VAC, 50 / 60 Hz |
DC Input Power | 24 VDC |
Power Source | AC Adapter, External Battery |
Max Power Consumption | 105 W |
Power Pass-Thru | No |
Physical
IP Rating | IP20 |
Packaging Info
Package Weight | 11.5 lb |
Box Dimensions (LxWxH) | 21.5 x 20.5 x 6" |
Litepanels Astra 6X Bi-Color LED Panel Specs
Light Fixture
Photometrics | 46° at 3200K: |
Color Temperature | 3200 to 5600K |
Color Accuracy Standard | CRI 95 at 3200K |
Cooling System | Fan/Passive Combo |
Dimming | Yes, 0 to 100% |
Display | None |
Housing Material | Aluminum |
Beam Angle | 46° |
Fixture Dimensions | 17.7 x 16.3 x 5.3" / 45.0 x 41.4 x 13.4 cm |
Fixture Weight | 7.0 lb / 3.2 kg |
Connectors
Power Input Connection | 3-Pin XLR |
Mounting
Yoke Mount | TVMP/ Hex Bolt |
Fixture Mount | 5/8" Receiver |
Accessory Mount | None |
Remote Operation
Remote Control Type | Bluetooth, DMX |
Power
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 24 VDC |
Power Source | AC Adapter, External Battery |
Max Power Consumption | 105 W |
Power Pass-Thru | No |
Physical
IP Rating | IP20 |
Packaging Info
Package Weight | 11.9 lb |
Box Dimensions (LxWxH) | 21.4 x 20.3 x 6" |
Litepanels Nano Light Stand (6.2') Specs
Minimum Height | 19.3" (49 cm) |
Maximum Height | 6.2' (1.9 m) |
Closed Length | ~19" (48.3 cm) |
Footprint Diameter | 3.3' (1 m) |
Weight | ~2 lbs (0.93 kg) |
Maximum Load | 3.3 lbs (1.5 kg) |
Attachment Size | 5/8" stud with 3/8" threaded top, 1/4"-20 threaded adapter |
Accepts Wheels | No |
Air Cushioned | No |
Packaging Info
Box Dimensions (LxWxH) | 20.2 x 4.4 x 4.6" |
Litepanels Battery Plate For Astra 1x1 LED Panel (Gold Mount) Specs
General
Mount | Gold Mount |
Packaging Info
Package Weight | 0.49 lb |
Box Dimensions (LxWxH) | 15 x 6.25 x 3.05" |
Litepanels Trio Travel Case With Cut Foam For 3 Astra Lights (Black) Specs
Interior
Interior Dimensions | 29.8 x 20.8 x 17.8" / 75.7 x 52.8 x 45.2 cm |
Padding | Foam |
Exterior
Closure Type | Latch, Hasp |
Carry and Transport Options | 3 x Handle |
Lid Depth | 4" / 10.16 cm |
Exterior Dimensions (W x H x D) | 33.3 x 24.4 x 19.3" / 84.6 x 62.0 x 49.0 cm |
Weight | 46 lb / 20.9 kg |
Packaging Info
Package Weight | 22.145 KG |
Box Dimensions (LxWxH) | 33 x 25 x 20" |
