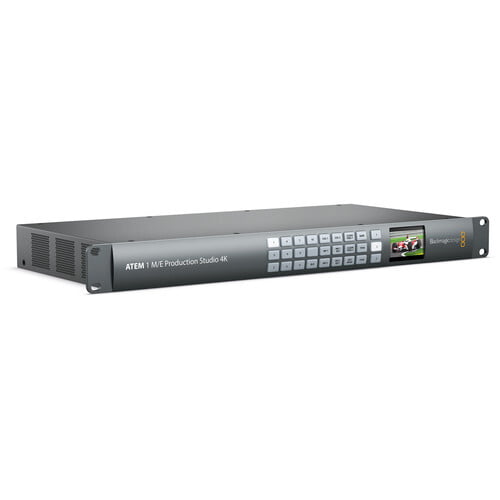

Blackmagic Design ATEM 1 M/E Production studio 4K

Effect Types

1 x DVE and Stinger
4 x Chroma Key
7 x Luma Key

Downstream Keys

2 x Alpha

Generators

7 x Pattern
2 x Color

Switching Type

Pushbutton, Software

Latency

2 Lines

Color Processing

10-Bit

Number of Video Input Sources

10

Video Input Connectors

10 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI)
1 x HDMI

Input Video Format

SDI (10-Bit)
UHD 4K: 23.98/24/25/29.97/30 fps
1080p: 23.98/24/25/29.97/50/59.94 fps
1080i: 50/59.94 fps
720p: 50/59.94 fps
PAL: 25 fps
NTSC: 29.97 fps
HDMI
UHD 4K: 23.98/24/25/29.97 fps
1080p: 50/59.94 fps
1080i: 50/59.94 fps
720p: 50/59.94 fps
PAL
NTSC

Audio Input Connectors

2 x 3-Pin XLR
1 x 2RCA

Embedded Audio Input

SDI: 2-Channel (per Input)

Video Output Channels

1

Video Output Connectors

2 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) (Program)
1 x BNC (HD-SDI) (Program)
1 x HDMI (Program)
1 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) (Preview)
3 x BNC (3G-SDI / 6G-SDI / HD-SDI / SD-SDI) (Pass-Through)

Output Video Format

SDI (10-Bit)
UHD 4K: 23.98/24/25/29.97/30 fps
1080p: 29.97/50/59.94 fps
1080i: 50/59.94 fps
720p: 50/59.94 fps
PAL (768 x 576)
NTSC
HDMI (10-Bit)
UHD 4K: 23.98/24/25/29.97 fps
1080p: 50/59.94 fps
1080i: 50/59.94 fps
720p: 50/59.94 fps
PAL (768 x 576)
NTSC

Audio Output Connectors

2 x 3-Pin XLR

Multiview Output

10-Way Multiview viaSDI
10-Way Multiview viaHDMI

Other I/O

1 x BNC Blackburst, Tri-Level Sync
1 x RJ45 LAN
1 x USB Type-B
1 x DE-9/DB-9 RS-422

Video Standard Compliance

SMPTE 259M/292M

HDCP Support

None

Display Size

2"

OS Compatibility

macOS 10.7 or Later
macOS 10.8 or Later
Windows 7
Windows 8

Power Connector

2 x IEC C14 Input

Power Consumption

Device: 100 to 240 VAC (300 W)

Rack Form Factor

1 RU

Dimensions

19 x 9.25 x 1.7" / 48.26 x 23.5 x 4.32 cm

Weight

5.73 lb / 2.6 kg
