Sennheiser EW 100 G4-845-S-G
$800.00
Tags:

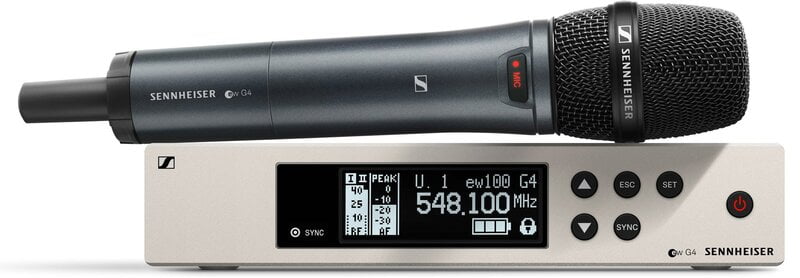

Rugged all-in-one wireless system for singers and presenters. Set consists of 1 SKM 100 G4 handheld with mute switch, 1 MMD 845-1 capsule (supercardioid, dynamic), 1 EM 100 G4 rackmount receiver, 1 rack kit, 1 RJ10 linking and mic clip.
Product Details
SPECIFICATION
- Frequency range
- 1G8: 1785 - 1800 MHzA: 516 - 558 MHzA1: 470 - 516 MHzAS: 520 - 558 MHzB: 626 - 668 MHzC: 734 - 776 MHzD: 780 - 822 MHzE: 823 - 865 MHzG: 566 - 608 MHzGB: 606 - 648 MHzK+: 925 - 937,5 MHz
- Dimensions
- Approx. 190 x 212 x 43 mm
- Compander
- Sennheiser HDX
- THD, total harmonic distortion
- ≤ 0.9 %
- Audio output
- 6.3 mm jack socket (unbalanced): +12 dBuXLR socket (balanced): +18 dBu
- Signal-to-noise ratio
- ≥ 110 dBA
- Switching bandwidth
- up to 42 MHz
- Peak deviation
- ±48 kHz
- Nominal deviation
- ±24 kHz
- Modulation
- Wideband FM
- Power supply
- 12 V DC
- Antenna connector
- 2 BNC sockets
- Current consumption
- 300 mA
- Adjacent channel rejection
- Typically ≥ 65 dB
- Intermodulation attenuation
- Typically ≥ 65 dB
- Receiving frequency
- Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- RF sensitivity
- < 2.5 μV for 52 dBA eff S/N
- Squelch
- low: 5 dBµV middle: 15 dBµV high: 25 dBμV
- Equalizer
- Preset 1: FlatPreset 2: Low Cut (-3 dB at 180 Hz)Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range
- -10 °C to +55 °C
- Receiver Principle
- True diversity
- Blocking
- ≥ 70 dB
