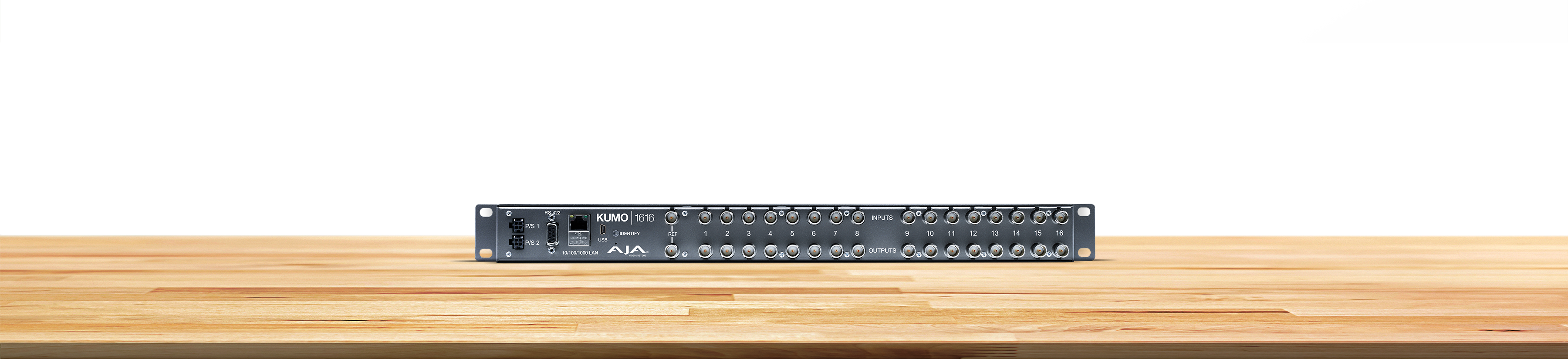

Aja KUMO Compact 16x16 3G-SDI Router

Video Formats

• 270 Mbps, 1.5 Gbps, 3 Gbps SDI
• 270 Mbps DVB-ASI

Video Input Digital

• 3G-SDI Inputs
• 16x BNC, SMPTE-259/292/424

Video Output Digital

• 3G-SDI Outputs
• 16x BNC, SMPTE-259/292/424
• Noninverting

Ancillary Data

• Passes all SDI embedded ancillary data including audio

Salvo

• Up to 8 Salvos can be configured and saved in each KUMO router

Cable Equalization

(Belden 1694A)

• 3 Gbps, up to 140m
• 1.5 Gbps, up to 200m
• 270 Mbps, up to 390m
• Automatic operation

Reclocking

• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select

Switching Modes

• Single/Normal, Dual, and Quad Link modes
• Switches in vertical blanking per SMPTE RP-168

Control Panel Compatibility

• AJA KUMO CP – 1RU X-Y Ethernet control panel
• AJA KUMO CP2 – 2RU X-Y Ethernet control panel

Reference Input

• External, 2x BNC
• Looping, nonterminating
• Blackburst or tri-level sync

Network Interface

• 1x RJ-45, 10/100/1000 Ethernet
• Supports AJA KUMO Ethernet control panels, direct connect or networked
• Basic support for Grass Valley Native Protocol
• Embedded web server for remote control

USB Interface

• 1x Mini-USB for IP configuration using AJA eMini-Setup

Serial Interface

• 1x DB-9 Female, RS-422
• Basic support for Grass Valley Native Protocol
• 9-pin D-connector pinout is as follows:

Size (w x d x h)

• 1RU - 17.4" x 1.54" x 1.75" (441.96 x 39.12 x 44.45 mm)

Weight

• 1.4 lb (0.7 kg)

Power

• External power supply required
  • Enclosure: Dual, redundant, 10-14VDC regulated, 4-pin Molex, 13W typical, 21.6W max.
  • AC adapter, included: 100-240VAC, 50/60 Hz, universal input, 60W
  • Optional redundant AC adapter sold separately, KUMO-PWR

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
