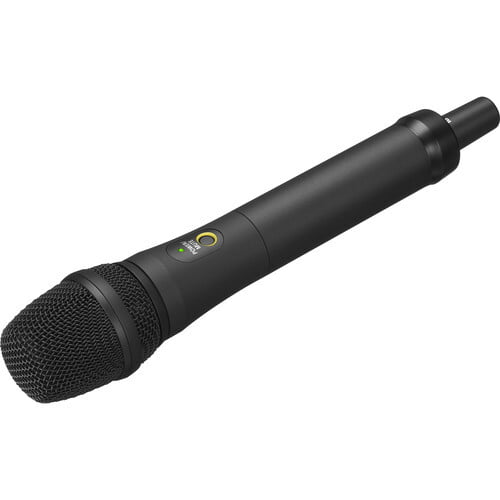

Sony UTX-M40/K21 UWP-D Handheld Microphone with Unidirectional Capsule
The Sony UTX-M40 is a wireless handheld microphone transmitter compatible with the URX-P40 camera-mount receiver. The rugged, all-metal design is comfortable for performers and presenters to hold and is well suited for tough operating conditions.
Specification
System
Wireless Transmission | Analog UHF |
RF Frequency Band | 14: |
RF Bandwidth | 72 MHz |
Frequency Step Size | 25 kHz |
RF Channel Scanning | Auto-Scan |
Max Operating Range | 330' / 100.6 m (Typical) |
Latency | 0.35 ms |
Modulation | FM |
Transmitter
Form Factor | Handheld |
RF Output Power | 5 / 30 mW |
Audio I/O | None |
Muting | Programmable Mute Switch |
Audio Input Level | -55 dBV (Mic Level) |
Gain Range | 0 to 21 dB (3 dB Steps) |
Frequency Response | 70 Hz to 18 kHz |
Sync Method | NFC |
Antenna | 1 x 1/4 Wave Wire (Handheld) |
Power Requirements | Battery, Bus Power (USB) |
Battery Type | 2 x AA (Not Included) |
Approx. Battery Life | 8 Hours (Alkaline) |
USB/Lightning Connectivity | 1 x USB Type-C (Bus Power) |
Display & Indicators | 1 x OLED (Audio Level, Battery Status, Peak, RF Output Power) |
Housing | Metal |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 131°F / -20 to 55°C |
Dimensions | 1.9 x 10.2" / 48 x 258 mm |
Weight | 9 oz / 255 g (without Batteries) |
Microphone
Form Factor | Handheld Capsule |
Sound Field | Mono |
Capsule | Dynamic |
Polar Pattern | Cardioid |
General
Packaging Info
Package Weight | 1.46 lb |
Box Dimensions (LxWxH) | 12.1 x 7.5 x 2.9" |
