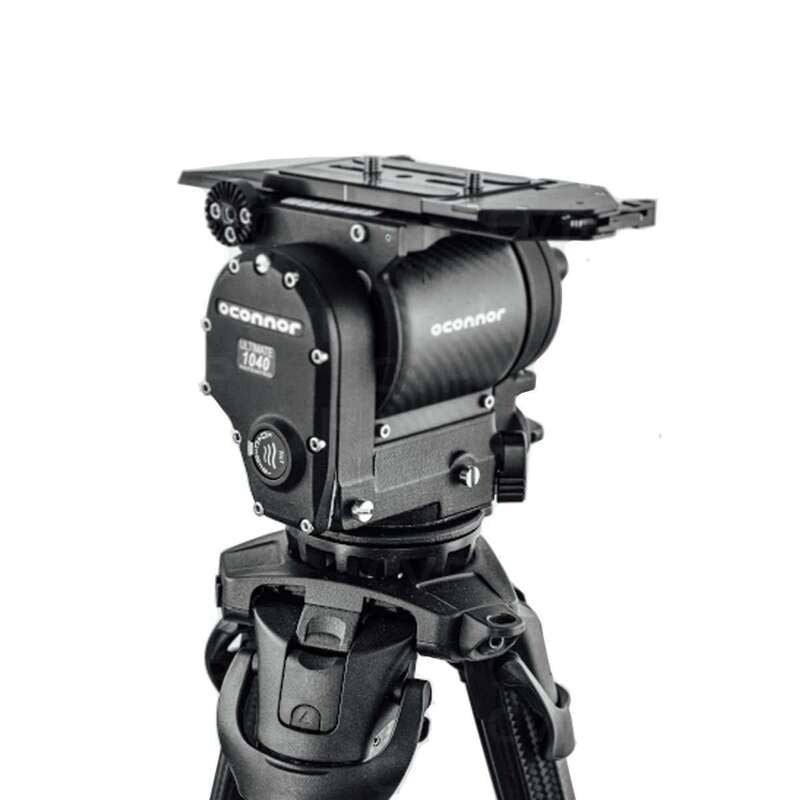

Oconnor 1040 Fluid Head & Flowtech 100 Tripod with Feet, Handle & Case
The OConnor 1040 Fluid Head and flowtech 100 Tripod System with Handle and Case combines the Ultimate 1040 fluid head with the lightweight, carbon fiber flowtech 100 tripod. Supporting up to 45 pounds, this bundle offers speedy setup, a QR plate, and stable support for cine-style digital or smaller ENG cameras. A carry handle and padded ENG bag round out this tripod kit.
Specification
Camera Plate
Camera Plate Features | Quick Release |
Camera Plate Type | Large Euro Plate |
Camera Mounting Screw | 2 x 3/8"-16 Male |
Tripod Platform
Camera Platform Adjustment | Yes |
Base Mount | 100 mm Half Ball |
Pan & Tilt
Drag Control | Tilt: Continuous |
Vertical Tilt | +90° to -90° |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
Physical
Load Capacity | 0 to 52 lb / 0 to 23.59 kg at CoG 4" / 10.16 cm |
Counter Balance | Continuous (0 to 45 lb / 0 to 20.41 kg) |
Center of Gravity | 4 to 8" / 10.16 to 20.32 cm |
Pan Handle Fittings | 2 x Rosette |
Base Diameter | 3.94" / 100 mm |
Dimensions | 7.6 x 6.2 x 4.6" / 19.3 x 15.75 x 11.68 cm |
Weight | 10.6 lb / 4.81 kg |
