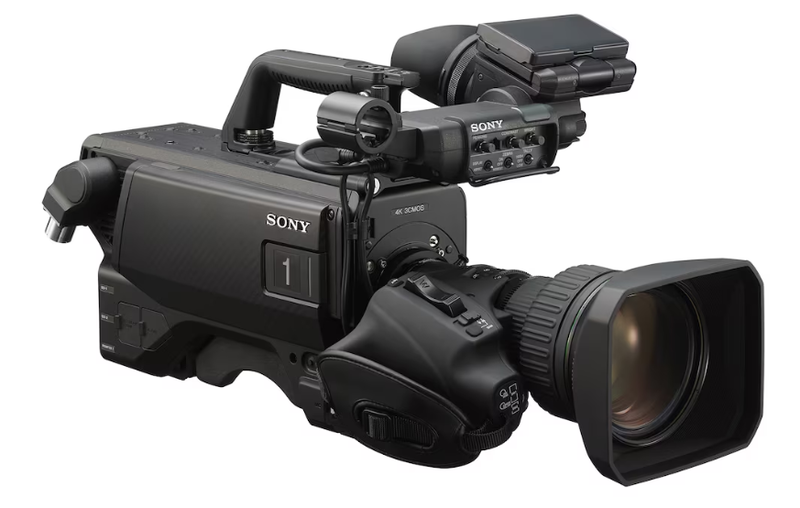

Sony HDC-3500H//U - 4K/HD Portable Studio Camera Head Without Side Panel

AC 240 V, 1.4 A (max.), DC 240 V, 1.05 A (max.)

-20°C to +45°C (-4°F to 113°F)

-20°C to +60°C (-4°F to 140°F)

Approx. 4.9 kg (10 lb 13 oz) (Unit only)
Approx. 5.1 kg (11 lb 4 oz) (when HKC-TR37 is attached)
Approx. 4.9 kg (10 lb 13 oz) (when HKC-FB30 is attached)

Electro-optical connector (LEMO 3K.93C connector) (x1)

12-pin (x1)

20-pin (x1)

XLR 3-pin, female (x1)

XLR 3-pin, female (x1 each)
AUDIO switch for MIC: –60 dBu (can be selected up to –20 dBu in the menu), balanced
AUDIO switch for LINE: 0 dBu, balanced

XLR 5-pin, female (x1 each)

4-pole mini jack (x1), (2-pole mono, 3-pole stereo, 4-pole CTIA standard, 4-pole OMTP standard)

XLR 4-pin (x1), DC 10.5 to 17 V

4-pin (x1), DC 10.5 to 17 V, max. 0.5 A*¹, 2-pin (x1), DC 10.5 to 17 V, Max. 2.5 A*¹

BNC (x1)

BNC (x1)

BNC (x1)

BNC (x1)

BNC (x1)
PROMPTER 1 Vp-p, 75 Ω
GENLOCK HD: SMPTE ST274, tri-level sync, 0.6 Vp-p, 75 Ω, SD: Black burst (NTSC: 0.286 Vp-p, 75 Ω/PAL: 0.3 Vp-p, 75 Ω)

BNC (x1), 1 Vp-p, 75 Ω

6-pin (x1)

8-pin (x1)

12-pin (x1)

12-pin (x1)

USB 2.0 Type A 4-pin (x1) (for connecting USB drive)

RJ-45 type 8-pin (x1)
